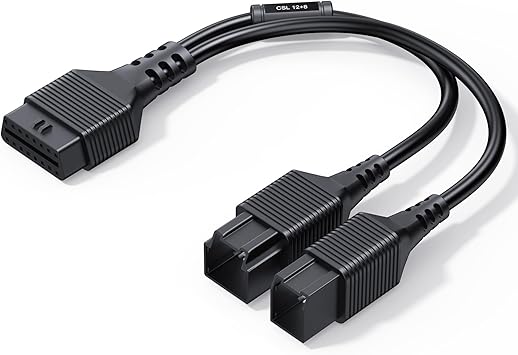

iCarsoft FCA 12+8 Pin Security Gateway (SGW) Diagnostic Bypass Cable
This specialized Chrysler 12+8 Pin adapter cable is an essential diagnostic accessory for select 2018 and all 2019+ FCA vehicles (Fiat Chrysler Automobiles) vehicles. It bridges the gap between your iCarsoft scan tool (such as CR MAX, CR MAX BT, CR Max P, CR Eagle.) and the vehicle's restricted network by bypassing the factory Security Gateway Module (SGW). With this simple plug-and-play cable, you can unlock full two-way communication to clear fault codes, run maintenance resets, and perform advanced commands that are otherwise blocked by the vehicle's onboard security.
The gateway says no. This cable says otherwise.
Instantly bypasses the vehicle's Security Gateway Module (SGW) to restore write privileges for aftermarket scanners.
Purpose-built to work flawlessly with iCarsoft handheld scanners, multi-system tablets.
Eliminates the "Read-Only" restriction, allowing your tool to successfully write data, clear codes, and execute service commands.
Connects directly to the vehicle's factory 12-pin and 8-pin connectors without needing to cut or splice any wires.
Engineered with premium automotive-grade PVC housing and high-conductivity copper cores to guarantee stable signal transmission.
Once the gate opens, your scanner does it all.
Overrides the gateway write-protection to turn off stubborn dashboard Warning and Check Engine Lights (MIL).
Enables your iCarsoft tool to accurately reset oil life counters, service intervals, and brake pad positioning.
Facilitates uninterrupted sensor data streaming and component adaptations across all vehicle modules.
Restores deep-level testing permissions across critical electronic control units including the Engine, ABS, Airbag, and Transmission.
Copper, shielding and zero compromises.

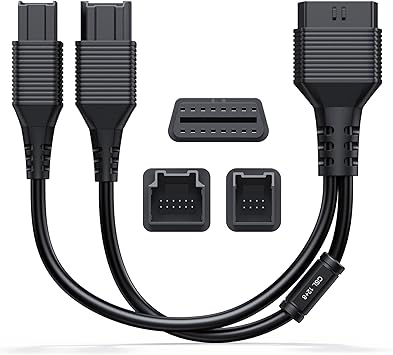

| Connector Architecture | 12-Pin & 8-Pin Male (Vehicle Gateway Side) to Standard 16-Pin Female OBD2 (Scanner Side) |
| Wiring Configuration | High-speed twisted pair wiring optimized for automotive data environments |
| Material & Build | Professional-grade, flame-retardant PVC with reinforced strain relief |
| Compatibility Profile | Passive pass-through adapter cable (Requires a compatible diagnostic scanner or adapter to function) |
If it left the factory with an SGW, it's on the list.
Required for 2018 vehicles (partial adoption) and all 2019+ models equipped with an SGW module.
Wrangler JL, Grand Cherokee, Cherokee, Compass, Renegade, Gladiator
Charger, Challenger, Durango, Journey
1500, 2500, 3500, ProMaster, ProMaster City
Pacifica, 300, 300C
500X, Giulia, Stelvio
One cable, and the read-only wall is gone.
Available through authorized sellers.
The FCA 12+8 Pin SGW Bypass Cable is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm your vehicle and scanner pairing, check stock, or find your nearest authorized distributor.
