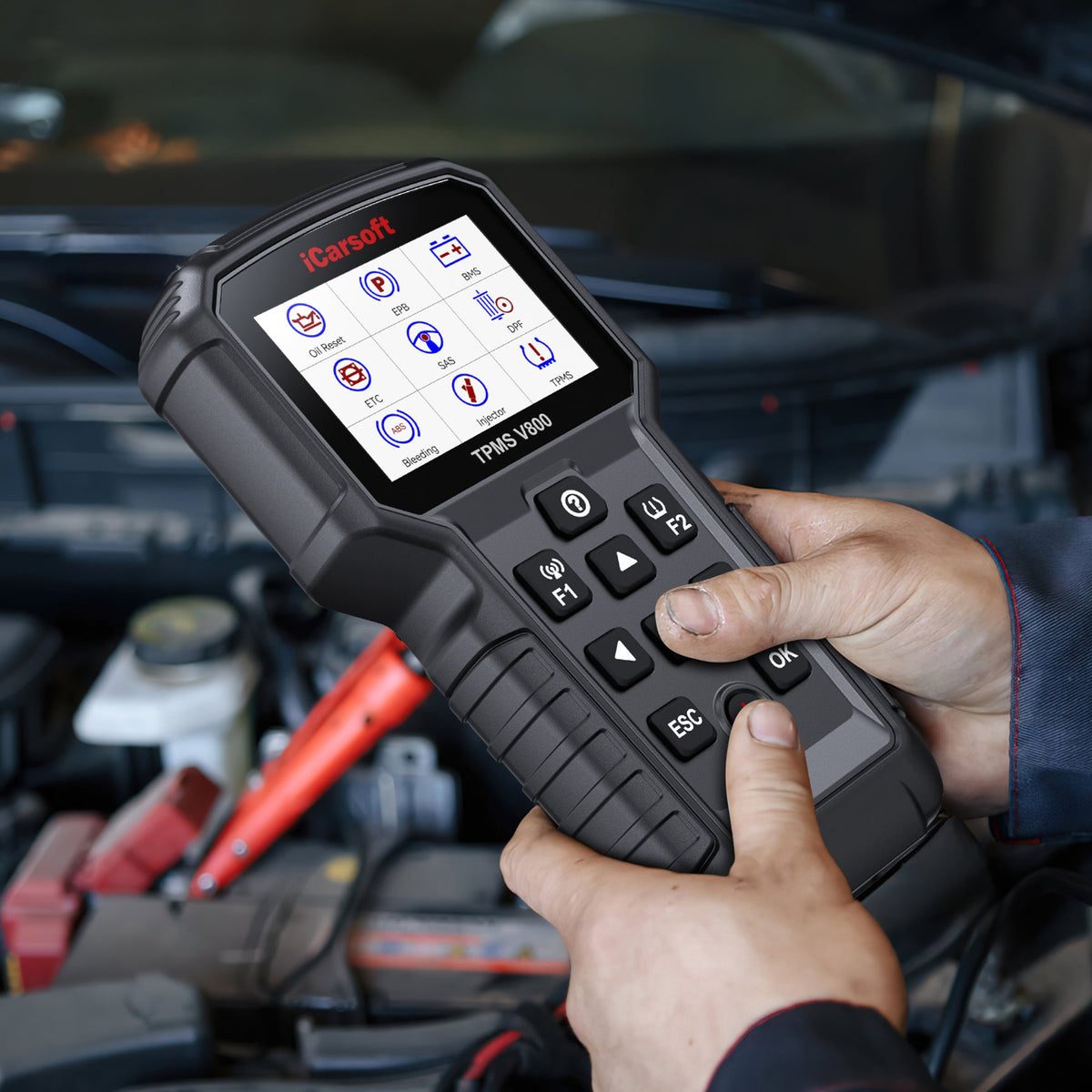

iCarsoft TPMS V800 Ultimate Diagnostic & TPMS Tool
The iCarsoft TPMS V800 is a professional-grade, multi-brand diagnostic scanner engineered for workshop owners, DIY mechanics, and automotive enthusiasts. This powerhouse combines advanced TPMS sensor programming with comprehensive full-system diagnostics and 9 hot service functions. Skip the complex setups—the TPMS V800 delivers dealership-level insights right out of the box.
58 brands, one handheld. Find yours in seconds.
Broad multi-brand coverage across European, American and Asian makes — from everyday drivers to Ferrari, Bentley and Rolls-Royce. Confirm your vehicle by VIN, or browse the full brand list below.
Trigger it. Read it. Program it. Own every sensor.
Take full control of your tire pressure monitoring system with dual-frequency support.
Seamlessly supports both 315MHz and 433MHz sensors.
Quickly trigger and read real-time sensor data.
Program blank sensors (e.g., iCarsoft S6000) with custom or auto-generated IDs.
On-screen guidelines simplify the TPMS relearn process.
Read/clear TPMS DTCs and check OE part numbers.
Read and write sensor IDs directly to the vehicle's ECU.
Turn off the annoying TPMS dashboard light in seconds.

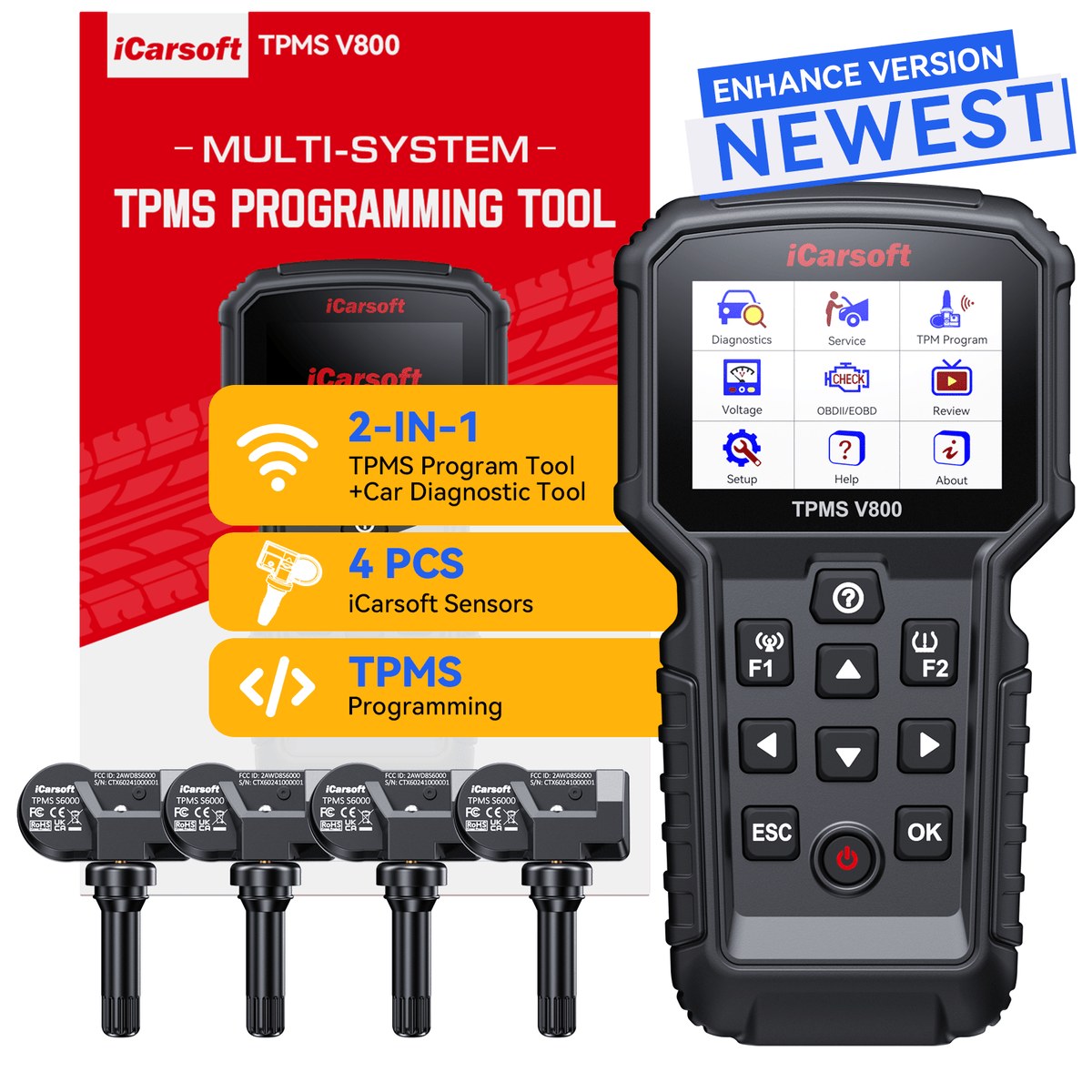

Shop TPMS S6000 sensors here: the programmable sensor built for the V800's Smart Programming workflow.
Shop S6000 Sensors →Built for the bench — no Wi-Fi, no fuss.

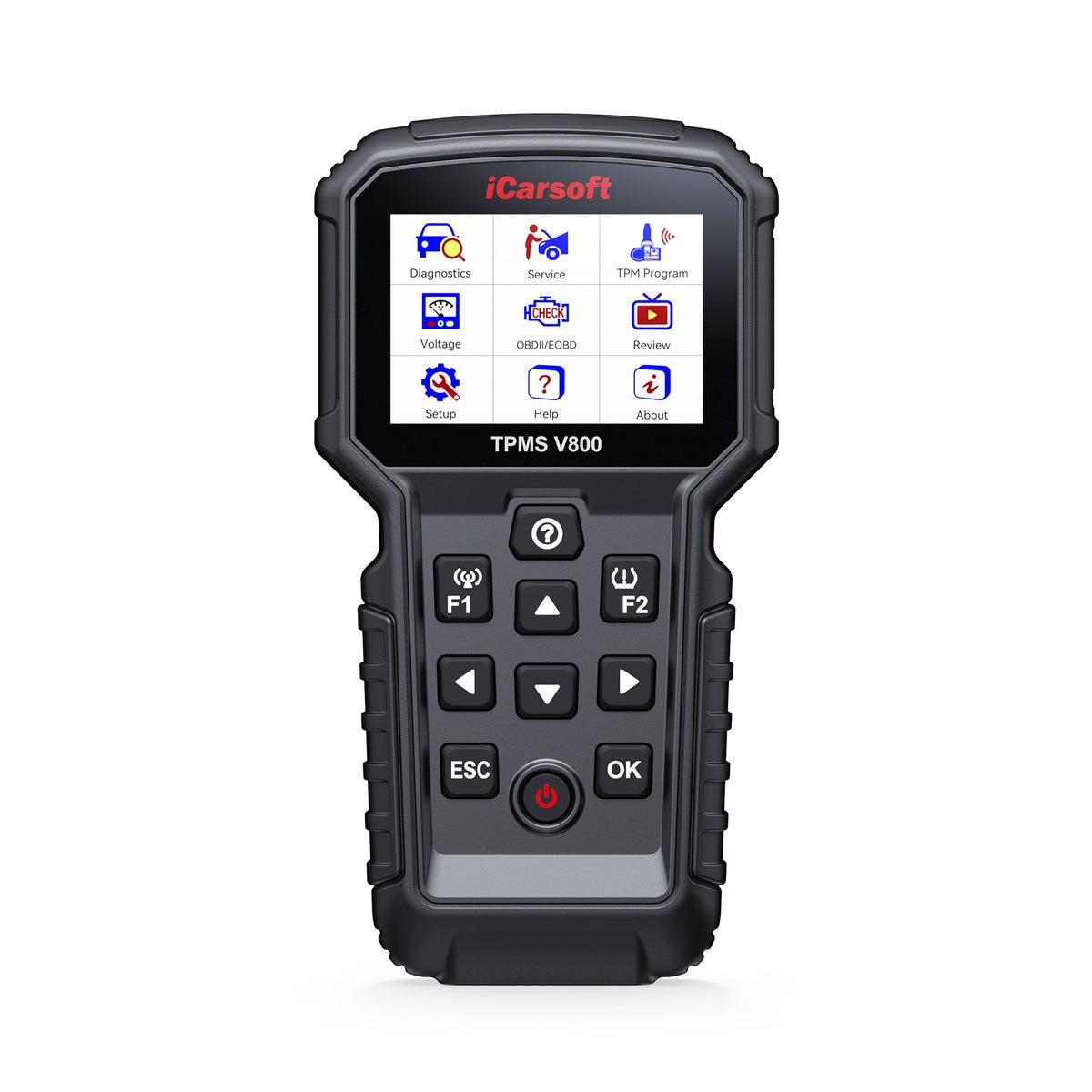

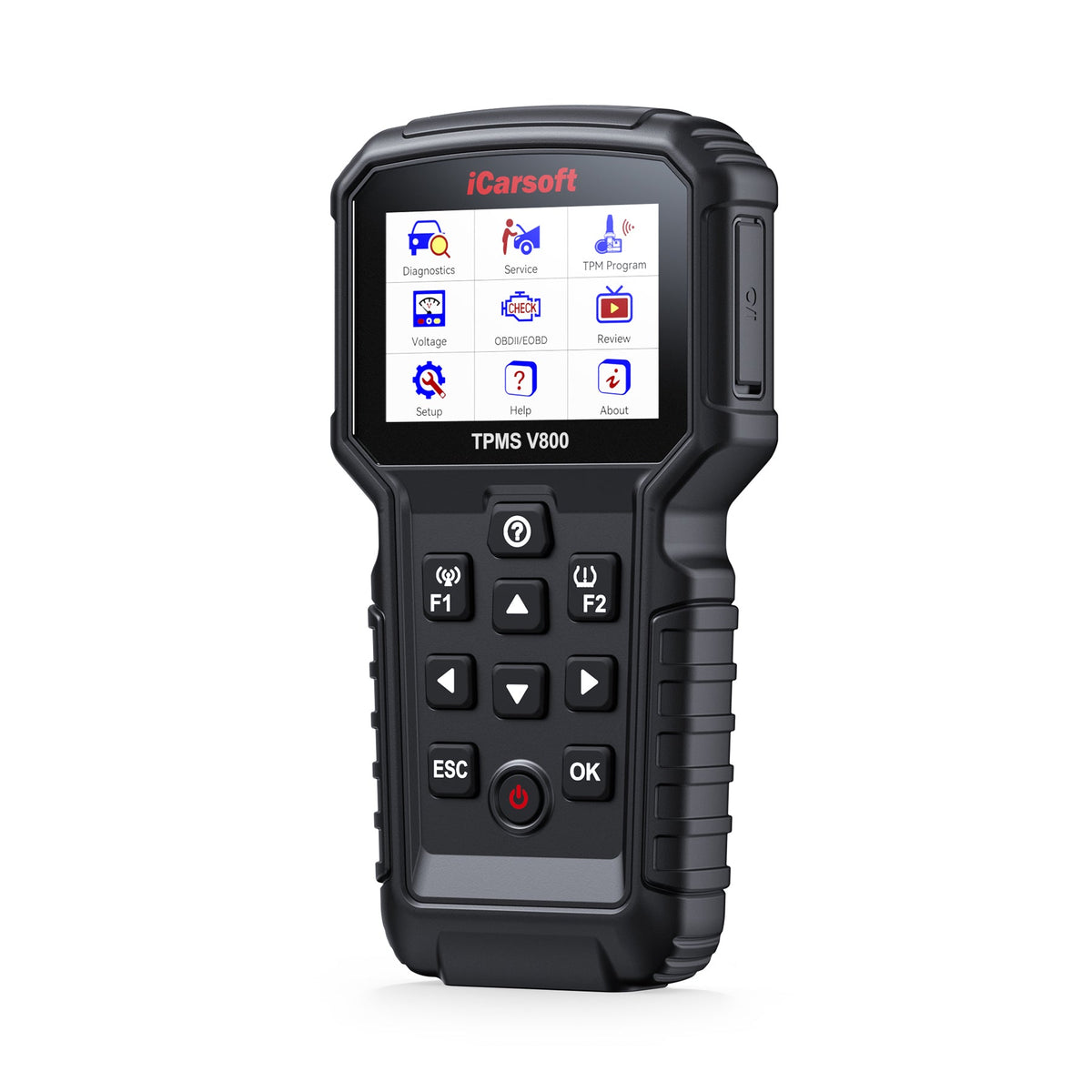

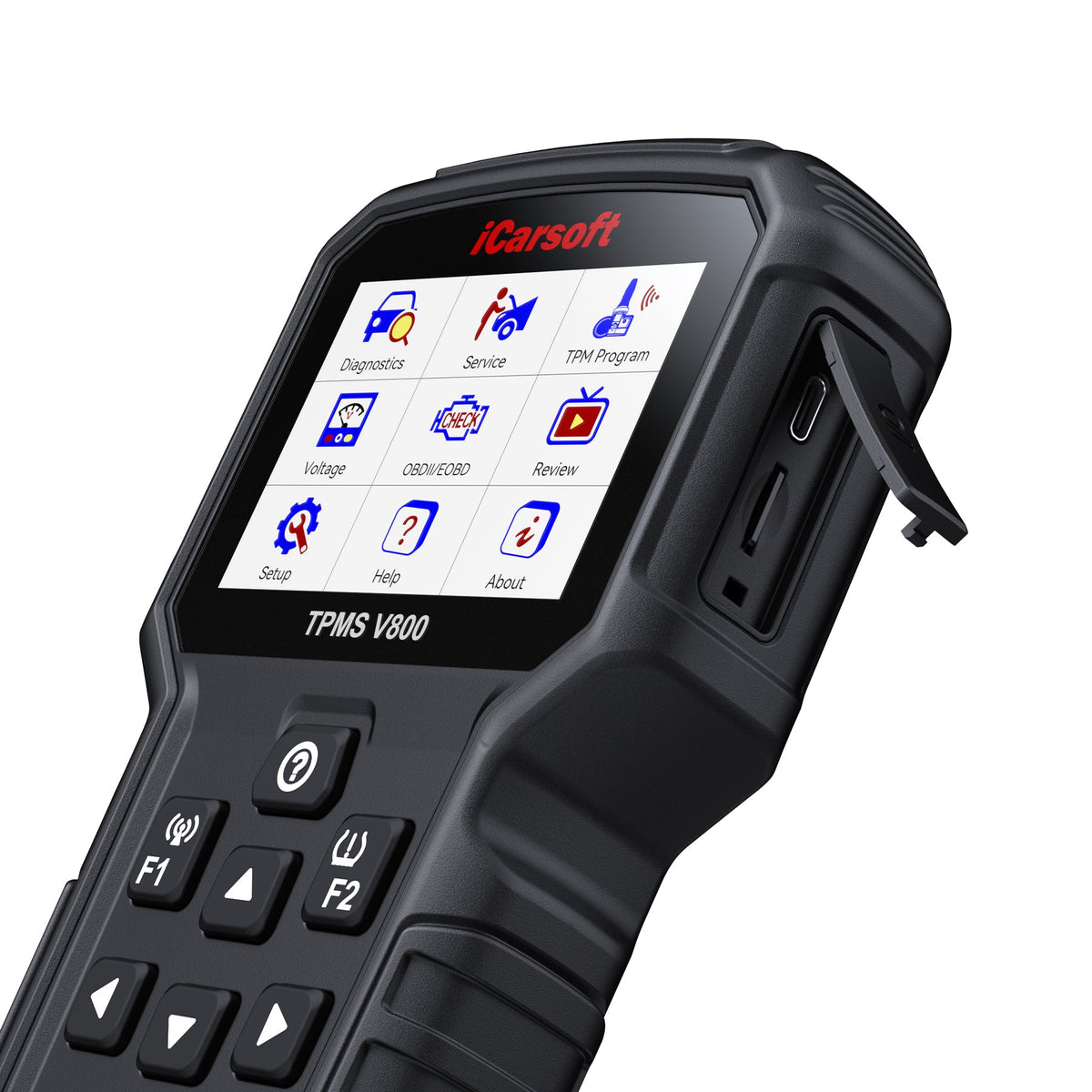

The iCarsoft TPMS V800 features a vibrant 3.5-inch screen and intuitive button navigation for quick, effortless menu browsing. It comes with a dedicated TF card reader, so you can update the software and vehicle database from your PC — no Wi-Fi required.
Zero subscriptions. Endless updates.
Unlike other OBD scan tools on the market that require annual subscription fees, the TPMS V800 offers lifetime free software update.
UPDATE PLANAlready fluent in tomorrow's bus language.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by today's modern cars. It is supported on 2020-and-newer G.M and Chrysler models.

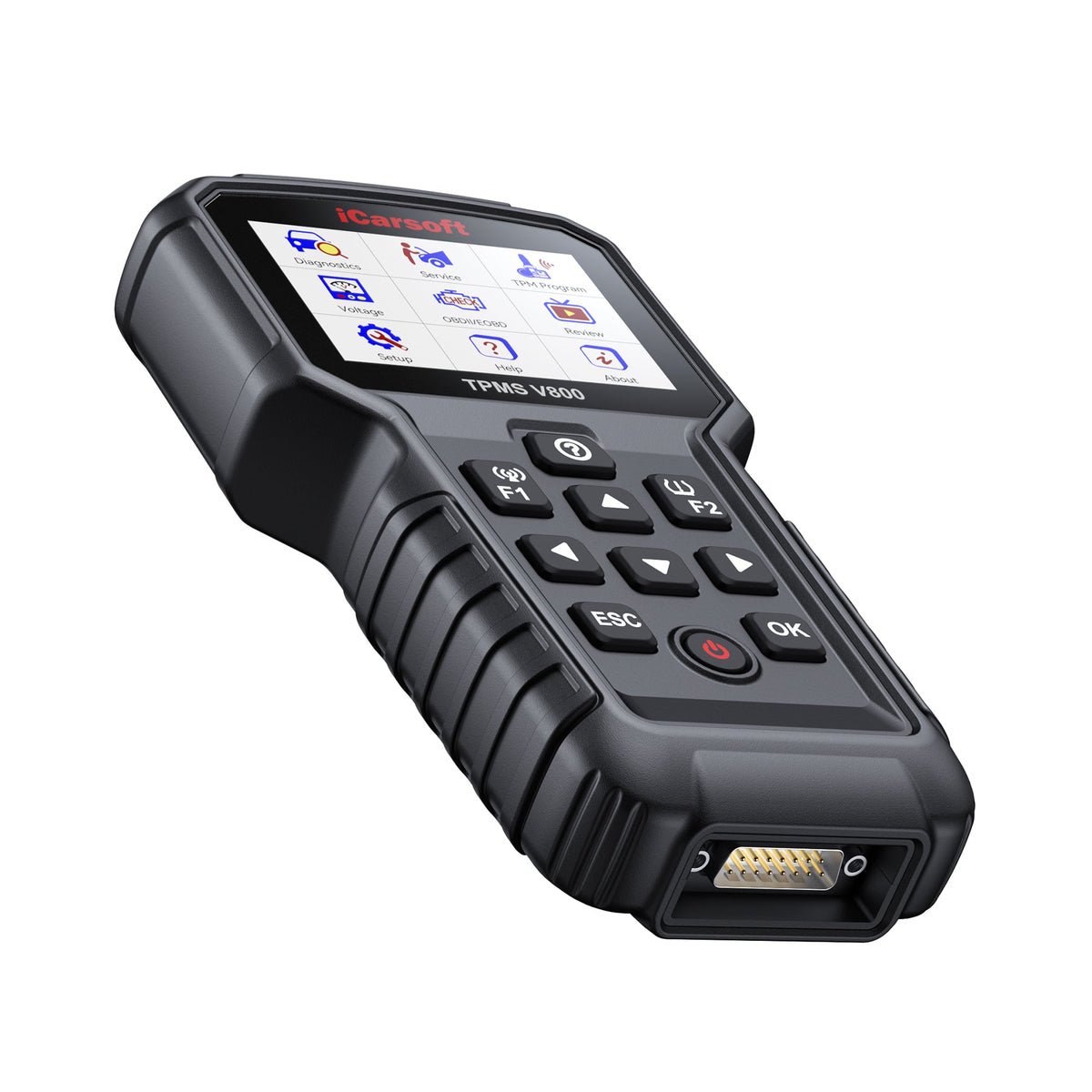

Plug in — the car introduces itself.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and makes every scan faster and more reliable.

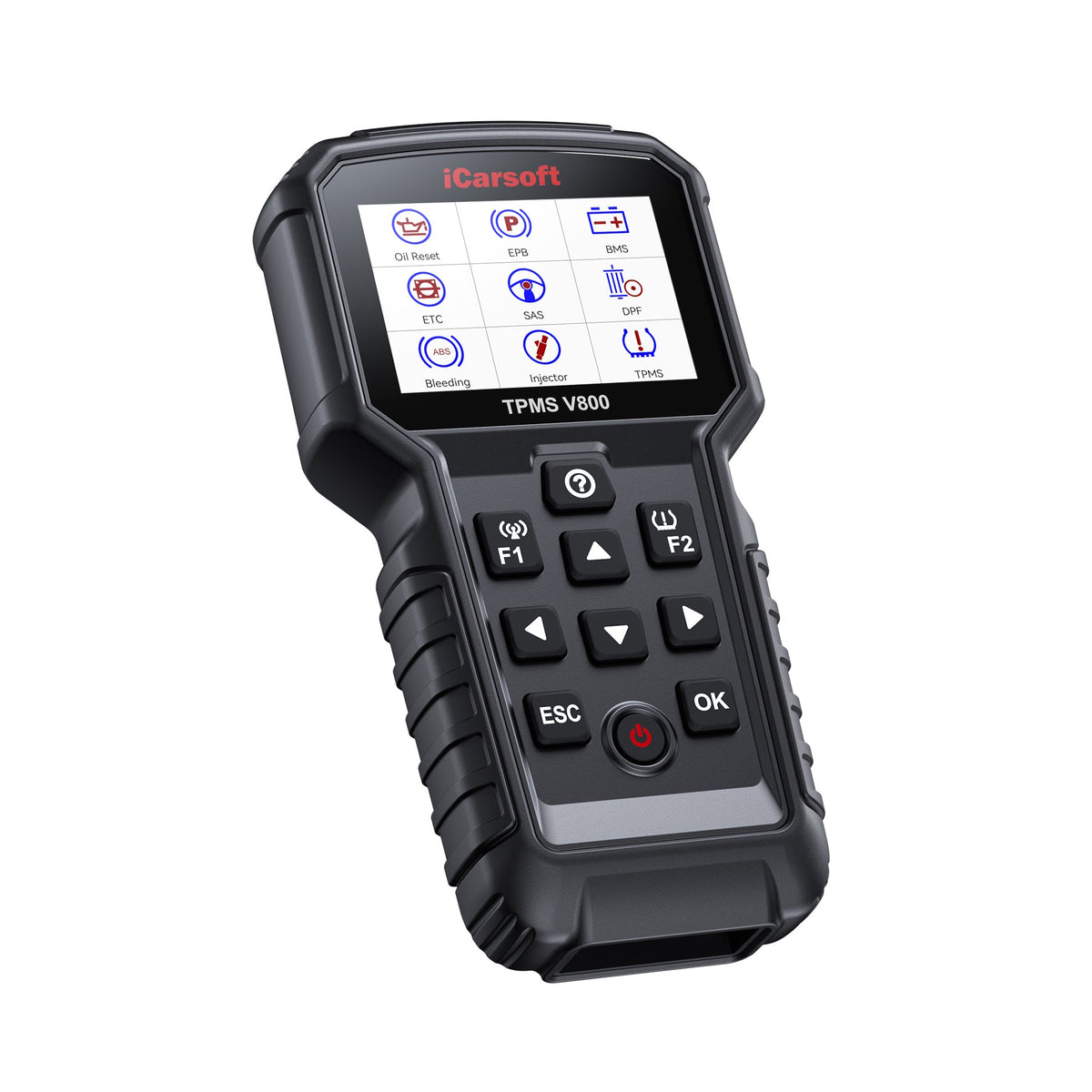

Nine dealership jobs, done in your own driveway.
The TPMS V800 is far more than a basic code reader or TPMS programming tool. It integrates 9 of the most commonly used service functions for everyday maintenance.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Inspection morning? Walk in already sorted.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.
Yesterday's scan, today's paperwork.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Jump back into previously tested vehicle systems in seconds — no re-scanning, no lost records.
Save & Share Reports
Keep a clean record of every job, then hand a customer or colleague the full picture.
Print via USB
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
The spec sheet — no fine print.
| Display | 3.5-inch TFT LCD color screen with 480 x 320 resolution |
| Connectivity | USB 2.0 / OBDII |
| Power | 9-18V |
| Type C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 209.4 × 112 × 35 mm (8.24 × 4.4 × 1.38 in) |
| Net Weight | ≈ 400 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
Open the case, get straight to work.
Answers, before you even ask.
Available through authorized sellers.
The TPMS V800 is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
