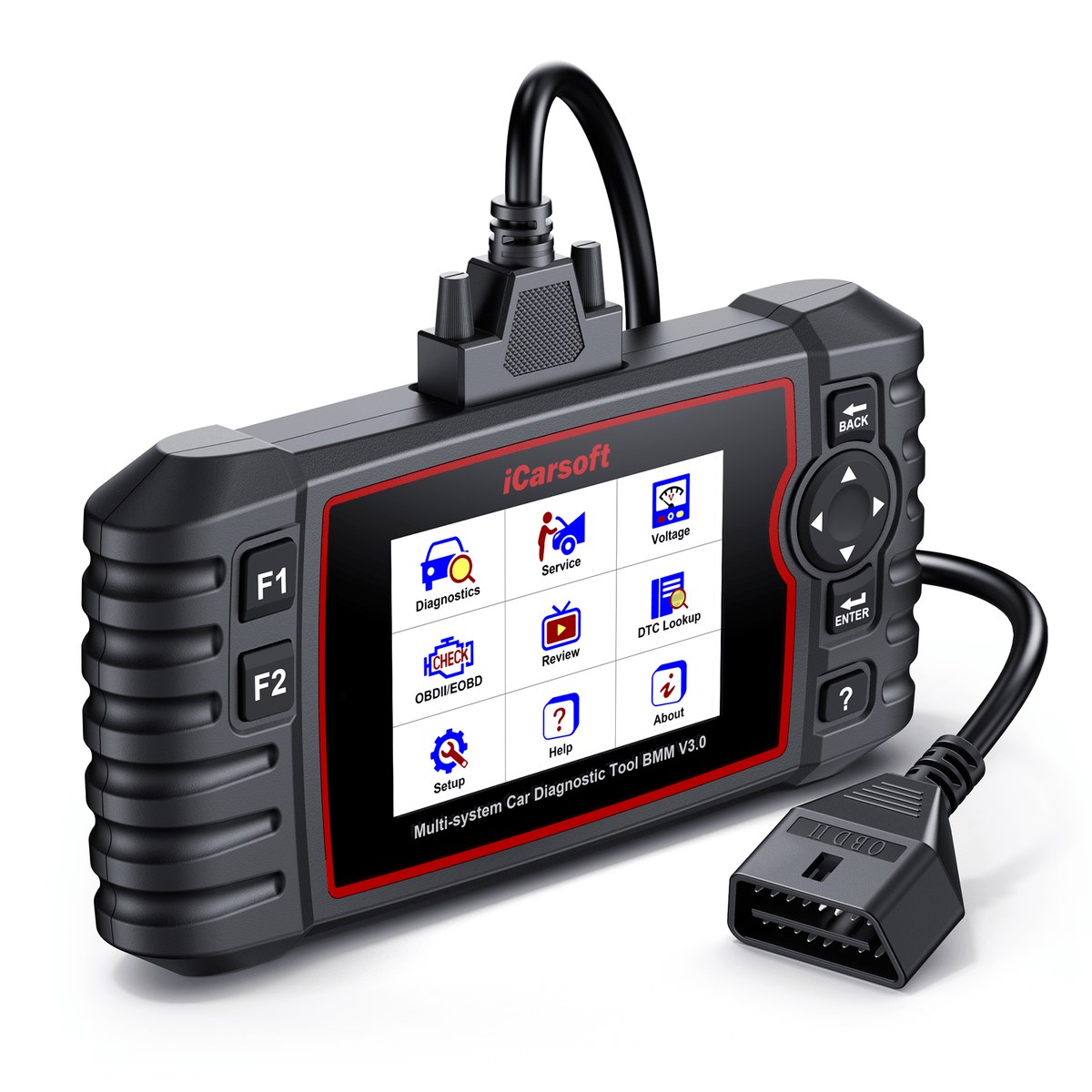

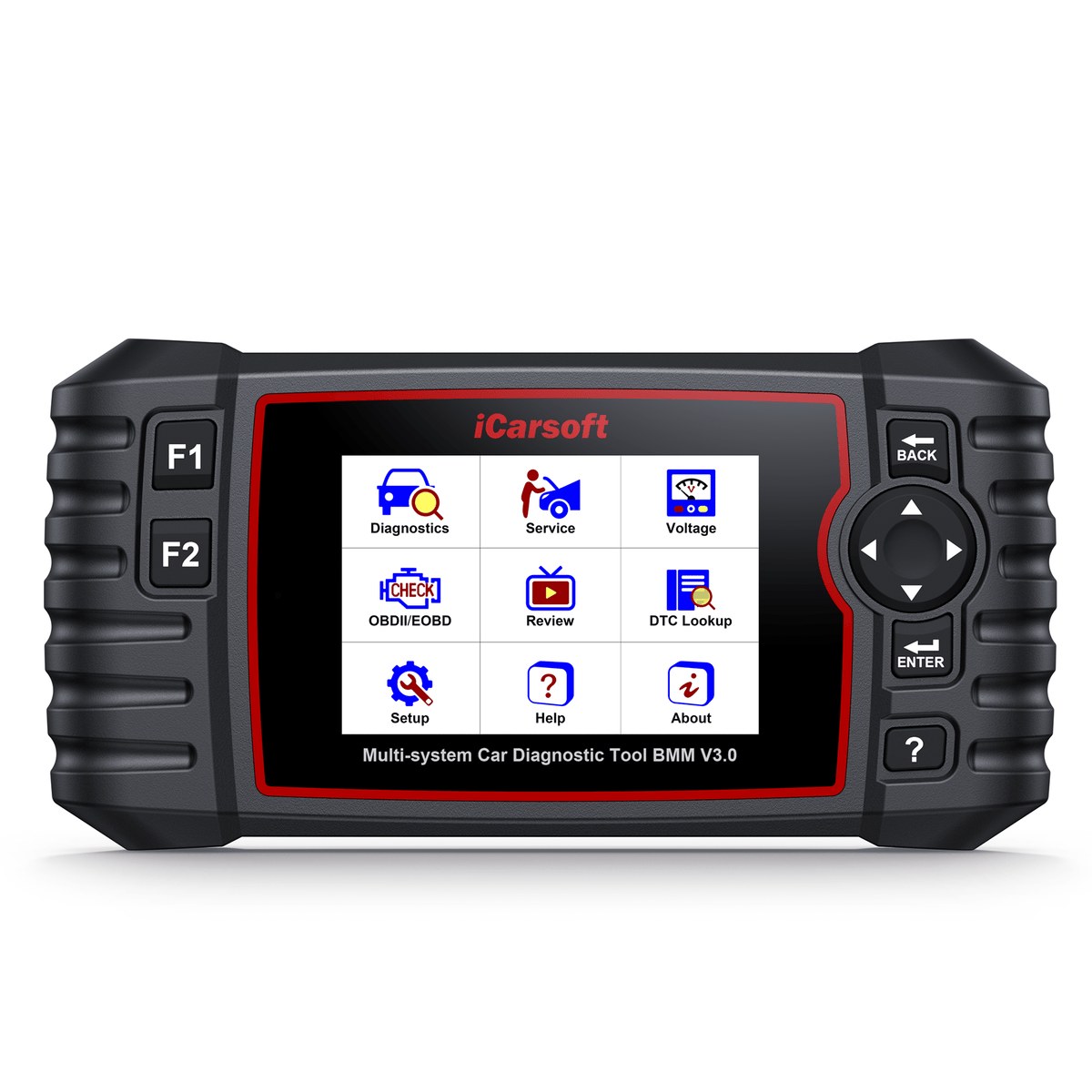

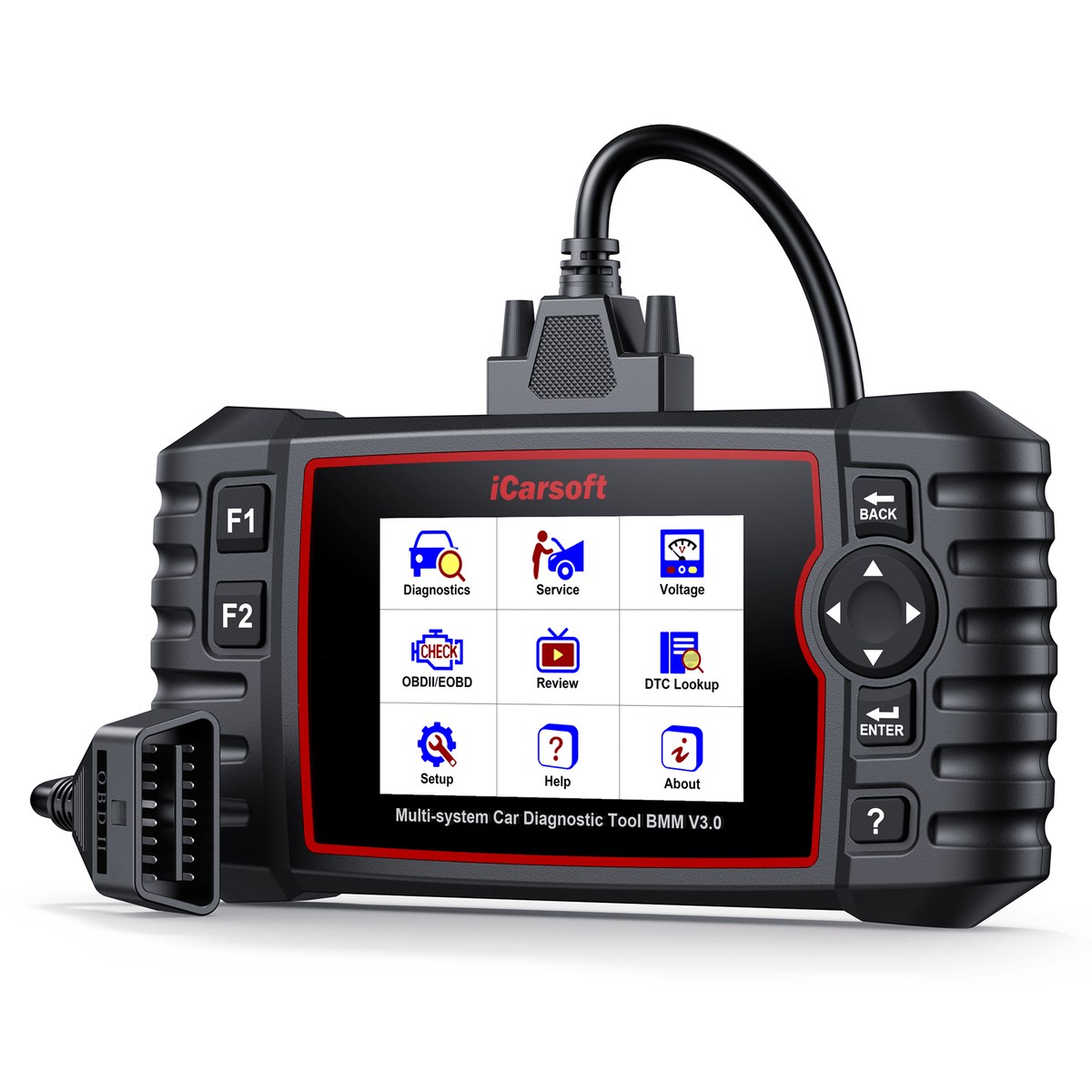

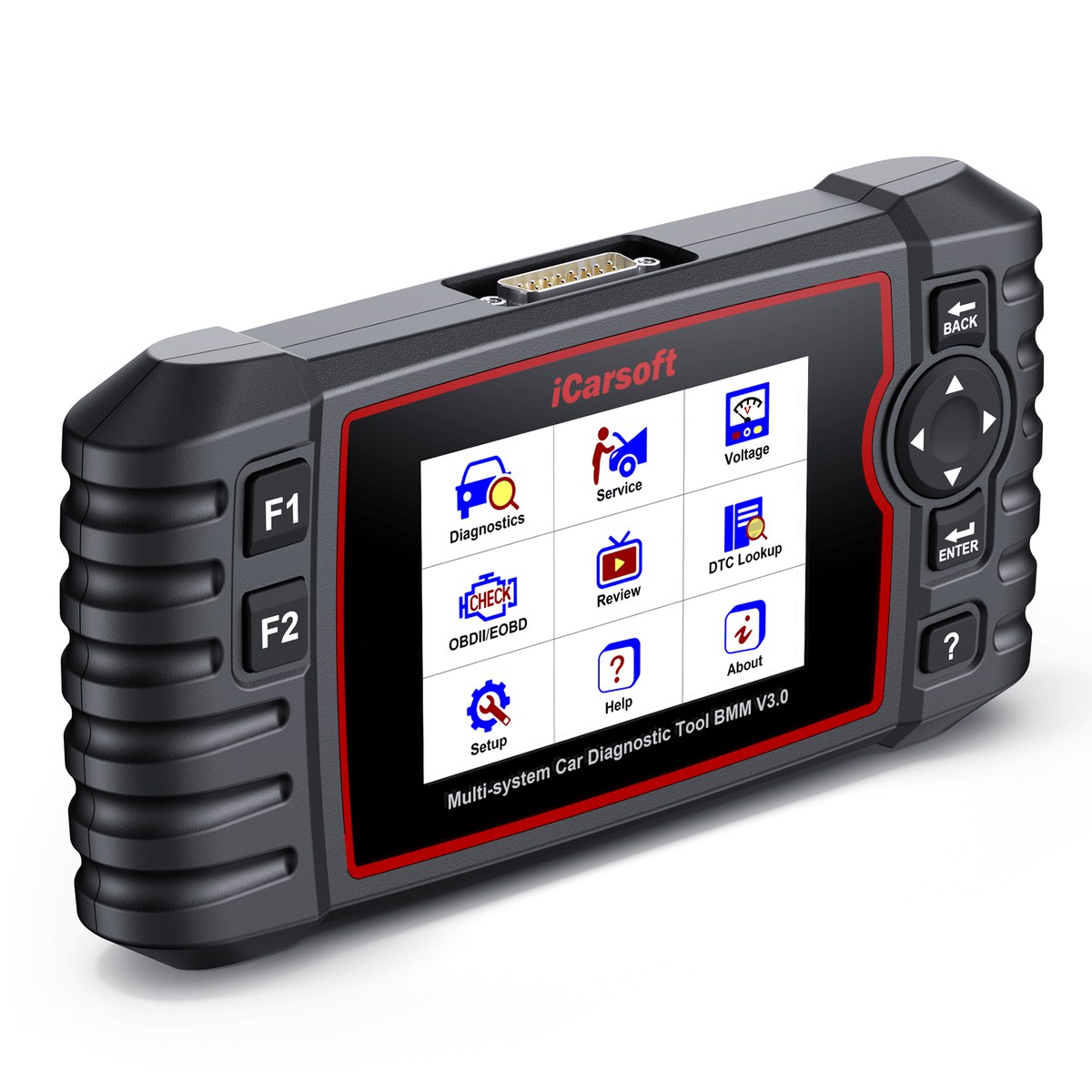

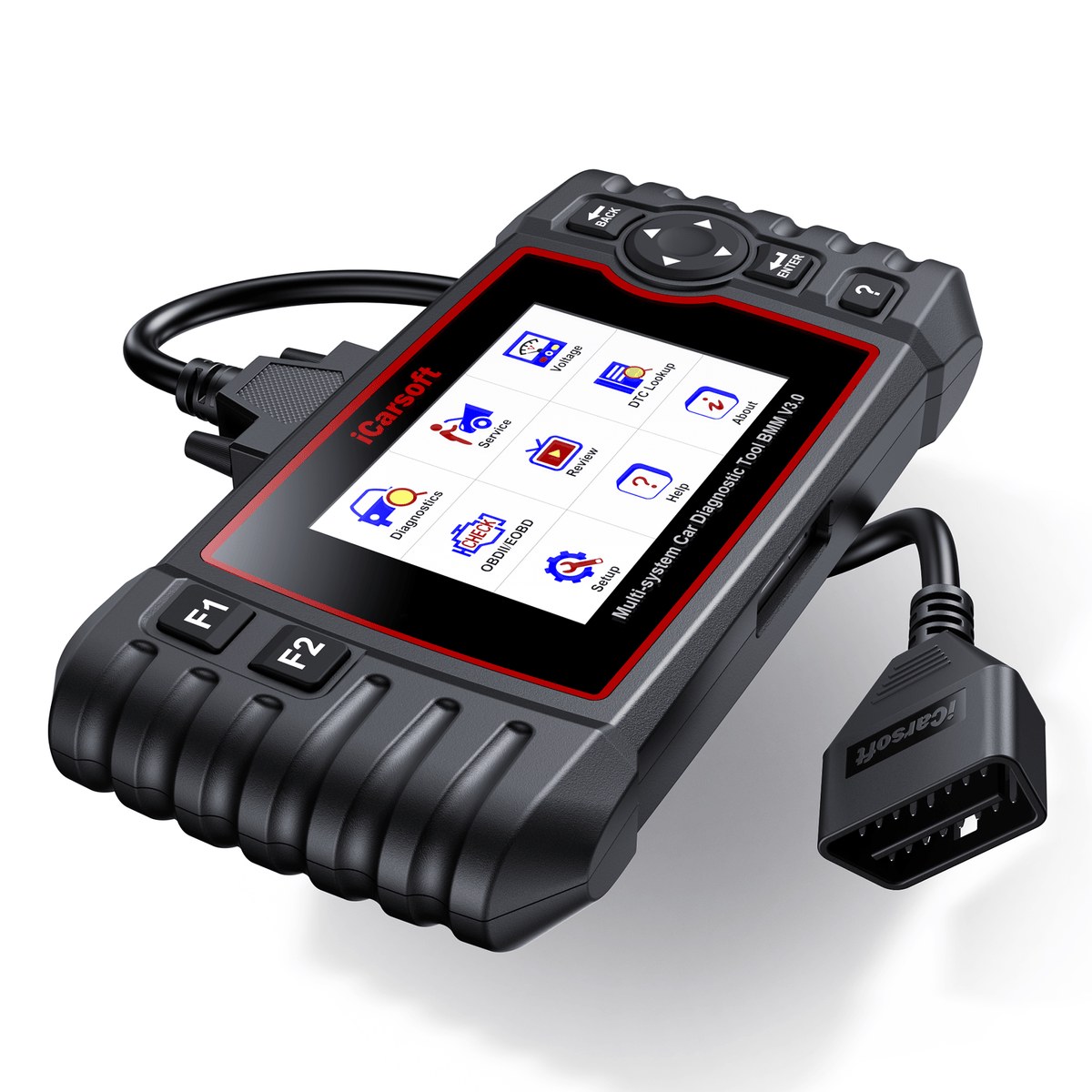

iCarsoft BMM V3.0
The BMM V3.0 covers every BMW / Mini / Rolls-Royce system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bi-directional control, 13 service functions, and lifetime free software updates. Compatible with BMW / Mini / Rolls-Royce models from 1996 to 2025. Standard 16-pin OBD2 covers 2001+ models; pre-2001 models require the optional 20-pin adapter (sold separately).
Simple buttons. Serious diagnostics.
The iCarsoft BMM V3.0 features a vibrant 4-inch screen and intuitive button navigation for quick, effortless menu browsing. It also comes standard with a dedicated card reader, making software and vehicle database updates entirely seamless via your PC. No Wi-Fi needed — update anytime via the included card reader and your PC.
Recode, repair and revive — the way a BMW dealer would.
Comprehensive ECU coverage tailored for BMW models manufactured from 2006 onwards.
Instantly recover corrupted data and fix deep-seated software glitches in crucial control modules.
Helps resolve sudden power loss, unexplained mechanical faults, and severe drops in fuel economy.
Don't just read the fault — make the car prove it.
What is Bi-Directional Control? The BMM V3.0 doesn't just read codes — it talks directly to your car. This professional-grade scanner sends active commands straight to individual vehicle modules and watches them respond in real time, bypassing the cabin switches entirely.
Body & Comfort Active Tests
Why do you need it? Imagine a power window won't roll up. Is it a broken door switch, a blown fuse, or a dead motor? Instead of ripping apart the door panel to test wires, you just tap the screen on your BMM V3.0. If the window rolls down, you know the motor is perfectly fine and the switch is the culprit. No more guesswork, no more buying parts you don't need.
- Command window regulators up and down to isolate bad switch clusters.
- Trigger door locks and side mirrors to pinpoint body control module glitches.
Powertrain & Fuel Active Tests
Send commands straight to the engine-side modules and watch each component respond in real time.
- Kick on the fuel pump instantly to verify fuel pressure dropping issues.
- Modulate throttle opening to check for sticking caused by carbon buildup.
Chassis & Brake Active Tests
Take direct control of the hydraulic hardware that normally only responds while driving.
- Cycle the ABS pump motor to purge trapped air during brake bleeding.
Dynamic Output Tests
Beyond the headline tests, the BMM V3.0 can exercise nearly every electrically driven component on the car.
- Run dynamic output tests on virtually any onboard actuator or solenoid in minutes.
Buy it once. Keep it current forever.
Unlike other OBD scan tools on the market that require annual subscription fees, the BMM V3.0 offers lifetime free software upgrades.
UPDATE PLANFluent in the newest language your car speaks.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by BMW / Mini / Rolls-Royce.
What is CAN-FD?
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation evolution of the classic CAN bus, now adopted across the newest BMW / Mini / Rolls-Royce platforms.
- Flexible Data-Rate: Transfers larger data frames at faster speeds than classic CAN, keeping up with modern vehicle electronics.
- Adopted by BMW / Mini / Rolls-Royce: The communication standard used on the brands' latest chassis generations.
CAN-FD Ready, Out of the Box
- Native CAN-FD Support: Talks the BMW / Mini / Rolls-Royce CAN-FD protocol directly from the standard OBD2 port.
- Newest Models Covered: Keeps the BMM V3.0 connected to the latest chassis in its 1996–2025 coverage range.
One Tool, Every Protocol
CAN-FD is only the newest layer — the BMM V3.0 speaks the full range of protocols used across three decades of BMW / Mini / Rolls-Royce models.
- Beyond CAN-FD: Also supports classic CAN (ISO 11898 high/medium/low-speed & single-wire), K/L-Line, ISO 9141-2, ISO 14230-2, ISO 15765, SAE-J1850 and more.
- Old or New, One Connector: Standard 16-pin OBD2 covers 2001+ models; pre-2001 models connect via the optional 20-pin adapter.
Plug in — your Bimmer introduces itself.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
One-Plug Identification
- Automatic VIN Read: Simply plug into the OBD2 port and the BMM V3.0 identifies your BMW, Mini or Rolls-Royce in seconds.
- No Extra Lookup Time: Skip manual VIN typing and model-menu digging entirely — go straight to diagnostics.
Accuracy Built In
- Eliminates Input Errors: No typos means the scanner always loads the exact software profile for your vehicle.
- Smoother, More Reliable Sessions: Correct identification from the first second delivers a more reliable diagnostic experience.
Manual Selection Backup
AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, it doesn't mean the device is faulty — you always have a second way in.
- Manual Selection Mode: Pick your model from the menu and every diagnostic and service function works exactly the same.
- Growing VIN Database: Send your VIN to the support team and it will be verified and added in the next software update.
Wrench in the language you think in.
BMW / Mini / Rolls-Royce scanner BMM V3.0 supports 15 interface languages — pick yours from the list below.
From oil light to deep resets — all in one menu.
The BMM V3.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 4 advanced professional functions for complex repair tasks.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Supports routine maintenance of DSC modules, including resetting or deleting adaptation values, and initializing the unit.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Adjusts the engine idle speed.
Every ECU on the bus, within reach.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the BMM V3.0 provides diagnostic coverage for more complex vehicle systems.
Read & Clear Codes and Freeze Frame
- Read and Clear DTCs: Pull trouble codes from every supported system and clear them once the repair is done.
- Read and Clear Freeze Frame Data: Review the exact sensor snapshot captured when a fault occurred, then clear it after servicing.
Live Data & ECU Information
- Read Live Data: Watch real-time sensor values and parameter streams while the vehicle is running.
- Read ECU Information: View each control module's identification details for accurate servicing and part matching.
Every Module, One Connector
Full-system coverage means the BMM V3.0 doesn't stop at the powertrain — it reaches the complex body, chassis and driver-assistance modules too.
- Access all ECU modules via OBDII-16 DLC: Reach every module on the vehicle through the standard 16-pin diagnostic connector.
OE-Level Adaptations
Dealer-grade procedures normally reserved for the workshop next door.
- Active Cruise Control: Service and adapt the ACC system directly from the scanner.
- KAFAS Camera Calibration Reset: Reset the KAFAS front-camera calibration after windscreen or camera work.
Ten modes. One pass. Emission day, sorted.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.
Don’t leave your classic behind.
Don't leave your classic behind. The BMM V3.0 delivers full diagnostic power to vintage, pre-2001 BMW models. By using the dedicated iCarsoft 20-pin adapter (available separately), you can seamlessly scan iconic heritage chassis including:
E-Chassis Cars
E23, E24, E28, E30, E31, E32, E34, E36, E38, Z3 (E36)
Early Generation Models
Early E39, Early E46, E52 (Z8), and Early E53 (X5)
20-Pin BMW Adapter — required for pre-2001 BMW models, sold separately.
Shop Adapter →Every scan remembered, every report ready.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.

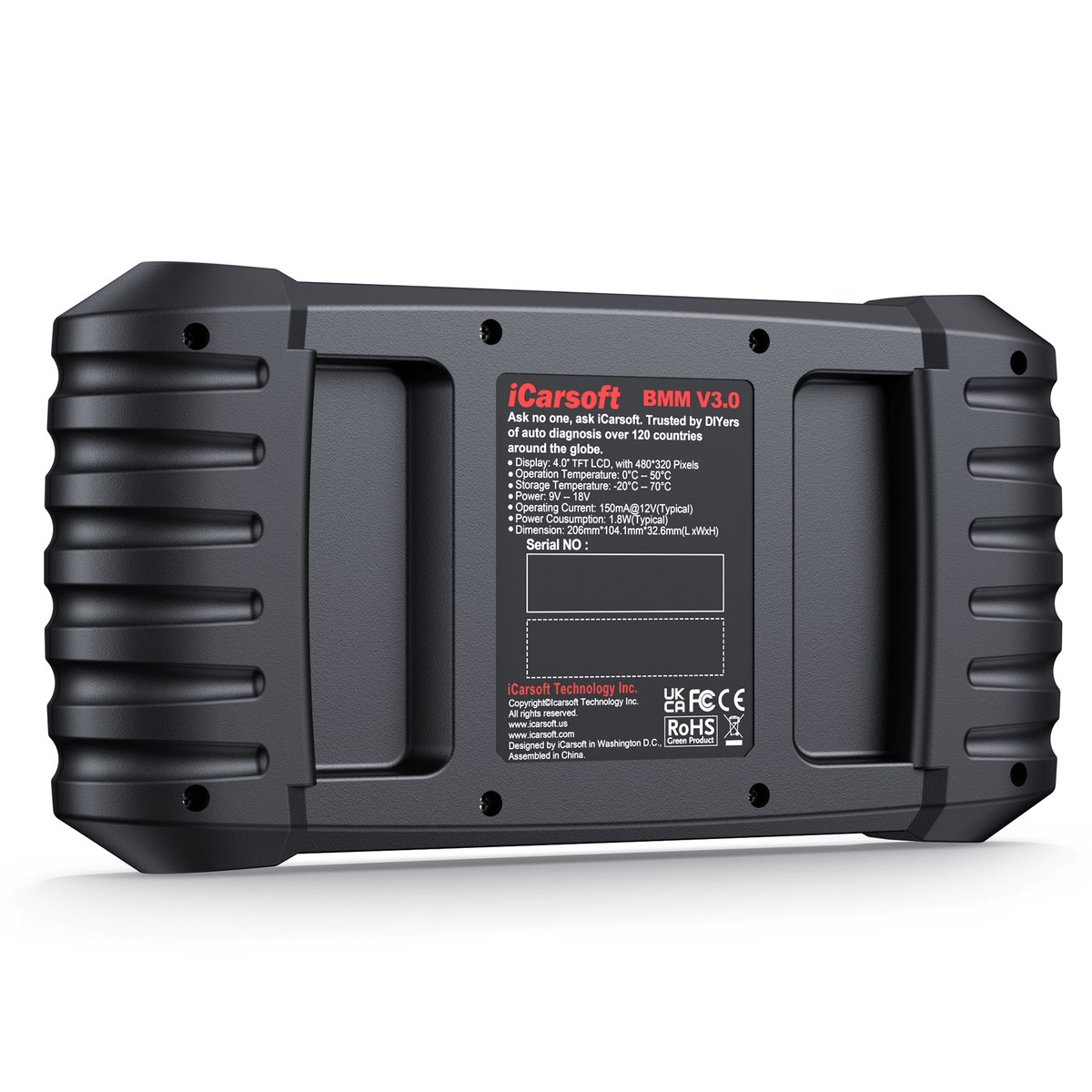

The numbers behind the confidence.
| Display | 4.0-inch TFT LCD color screen with 480 x 320 resolution |
| Connectivity | USB 2.0 / OBDII |
| Power | 9-18V |
| Type C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 206 × 104.1 × 32.6 mm (8.11 × 4.10 × 1.28 in) |
| Net Weight | ≈ 350 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

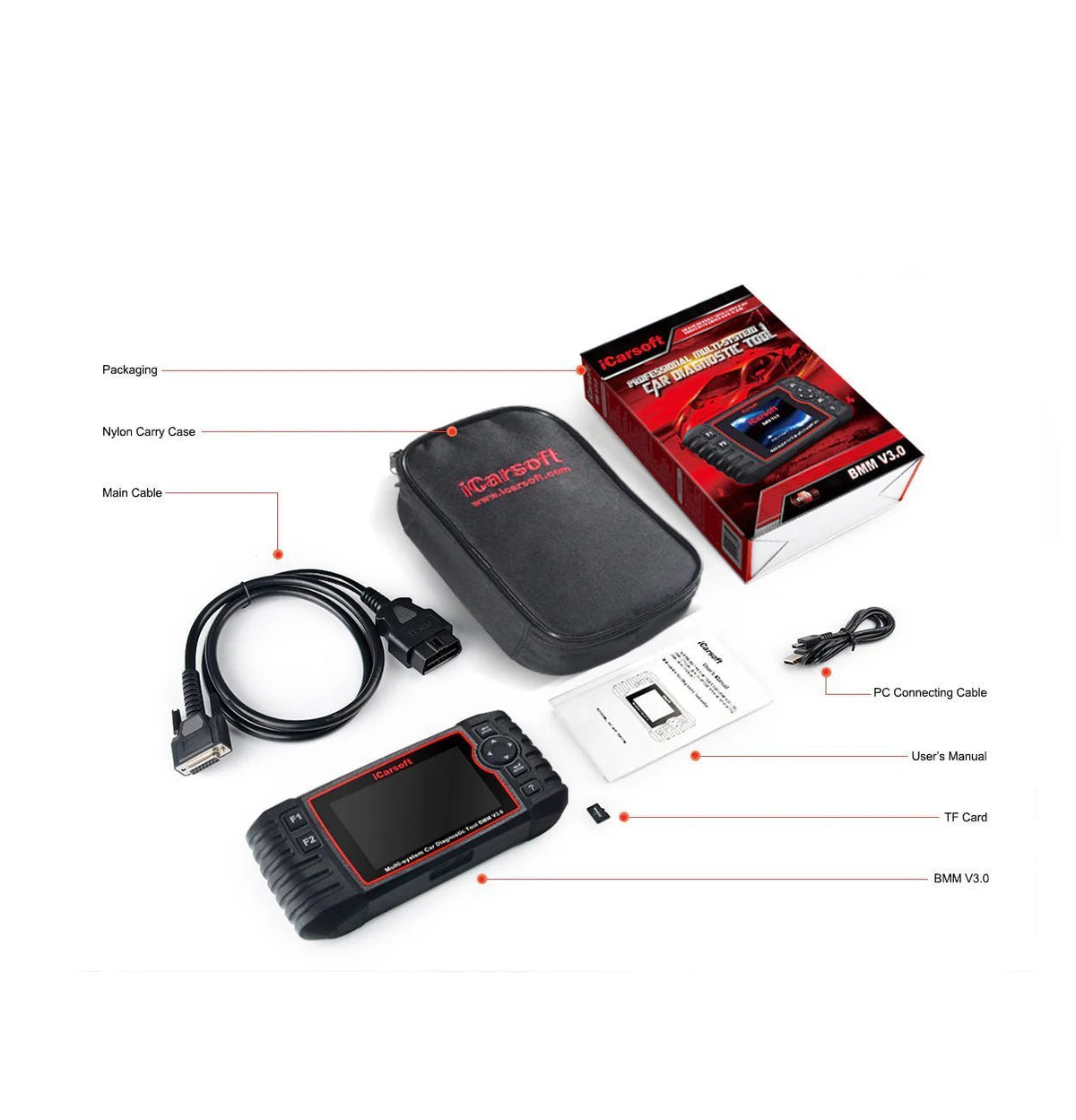

Everything you need, in the case.
Where the V3.0 sits in the BMM family.
Every BMM scanner carries the same trusted BMW / Mini / Rolls-Royce coverage — the V3.0 is the generation that adds full bi-directional control and the expanded set of high-level service functions.
| Feature | BMM V1.0 | BMM V2.0 | BMM V3.0 | BMM V4.0 |
|---|---|---|---|---|
| Coverage | BMW Mini Rolls Royce | BMW Mini Rolls Royce | BMW Mini Rolls Royce | BMW Mini Rolls Royce +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 6 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Standard 16-Pin OBD2
Built in on every BMM V3.0 — plug-and-play on BMW / Mini / Rolls-Royce models with the standard OBD2 port. No adapter needed.
20-pin BMW Adapter
For BMW E30, E36, Early E46, E34, Early E39, E32, E38, E36 Z3, E52, Early E53, E31, E28, E24, E23. Pre 2001 BMW models.
Driving a pre-2001 classic? The 20-pin BMW adapter is sold separately — contact us to confirm the right fit for your chassis.
Shop Adapter →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the BMM V3.0 from BMW / Mini / Rolls-Royce owners, mechanics and channels — see the unit running live diagnostics, bidirectional tests and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the BMM V3.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which BMW / Mini / Rolls-Royce models and functions the BMM V3.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
Available through authorized sellers.
The BMM V3.0 is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
