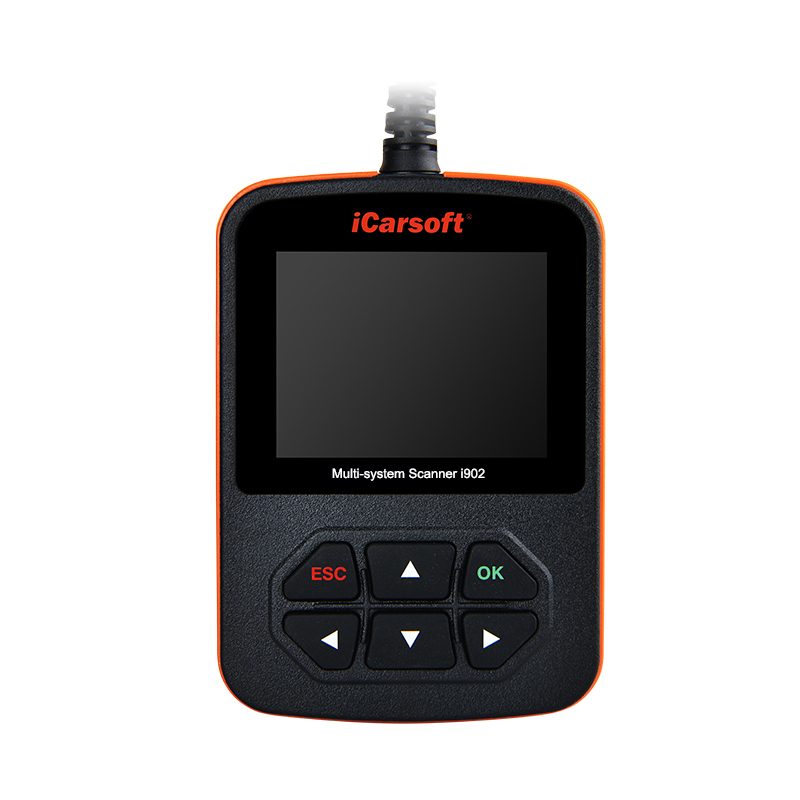

iCarsoft i902
The i902 covers a wide range of Opel / Vauxhall electronic systems — from engine and transmission to SRS airbag and ABS—providing comprehensive OE-level diagnostic scans, 2 essential service functions, and lifetime free software updates. It is the ultimate plug-and-play companion compatible with all Opel / Vauxhall models from 1996 to 2025.
Solid in the hand. Instant on the screen.
The iCarsoft FD V1.0 features a vibrant 2.8-inch screen and intuitive button navigation for quick, effortless menu browsing. Supports seamless software and vehicle-database updates — no Wi-Fi needed, just update anytime via your PC.
Buy it once. Keep it current forever.
Unlike other OBD scan tools on the market that require annual subscription fees, the i902 offers lifetime free software upgrades.
UPDATE PLANFluent in the newest language your car speaks.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Opel/Vauxhall.
What is CAN-FD?
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation evolution of the classic CAN bus, now adopted across the newest Opel / Vauxhall platforms.
- Flexible Data-Rate: Transfers larger data frames at faster speeds than classic CAN, keeping up with modern vehicle electronics.
- Adopted by Opel / Vauxhall: The communication standard used on the brands’ latest chassis generations.
CAN-FD Ready, Out of the Box
- Native CAN-FD Support: Talks the Opel / Vauxhall CAN-FD protocol directly from the standard OBD2 port.
- Newest Models Covered: Keeps the i902 connected to the latest chassis in its 1996–2025 coverage range.
One Tool, Every Protocol
CAN-FD is only the newest layer — the i902 speaks the full range of protocols used across three decades of Opel / Vauxhall models.
- Beyond CAN-FD: Also supports classic CAN (ISO 11898 high/medium/low-speed & single-wire), K/L-Line, ISO 9141-2, ISO 14230-2, ISO 15765, SAE-J1850 and more.
- One Standard Connector: The 16-pin OBD2 main cable plugs straight into supported Opel and Vauxhall models.
Wrench in the language you think in.
Opel/Vauxhall scanner i902 supports English, German, French, Dutch, Spanish, and Italian.
The two resets every Opel & Vauxhall owner ends up needing.
The i902 is far more than a basic code reader. It integrates 2 commonly-used service functions for daily maintenance.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Every ECU on the bus, within reach.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the i902 provides diagnostic coverage for more complex vehicle systems.
Read & Clear Codes and Freeze Frame
- Read and Clear DTCs: Pull trouble codes from every supported system and clear them once the repair is done.
- Read and Clear Freeze Frame Data: Review the exact sensor snapshot captured when a fault occurred, then clear it after servicing.
Live Data & ECU Information
- Read Live Data: Watch real-time sensor values and parameter streams while the vehicle is running.
- Read ECU Information: View each control module's identification details for accurate servicing and part matching.
Every Module, One Connector
Full-system coverage means the i902 doesn't stop at the powertrain — it reaches the complex body, chassis and driver-assistance modules too.
- Access all ECU modules via OBDII-16 DLC: Reach every module on the vehicle through the standard 16-pin diagnostic connector.
Emission day, sorted in one pass.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test and Pending codes.
Every scan remembered, every report ready.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.
The numbers behind the confidence.
| Display | 2.8-inch TFT LCD color screen with 320 x 240 resolution |
| Operating Current | 150 mA @ 12 V (Typical) |
| Power | 9-18V |
| USB Type-C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 187.5 × 101 × 32 mm (7.38 × 3.98 × 1.26 in) |
| Net Weight | < 400 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
Everything you need, in the case.
Where the i902 sits in the OP family.
Every scanner in the OP range carries the same trusted Opel / Vauxhall coverage — the i902 is the essential entry with the two most-used resets built in. Newer generations add more service functions, then bi-directional control.
| Feature | i902 | OP V2.0 | OP V3.0 | OP V4.0 |
|---|---|---|---|---|
| Coverage | Opel Vauxhall | Opel Vauxhall | Opel Vauxhall | Opel Vauxhall +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 25 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Standard 16-Pin OBD2
Built in on every i902 — plug-and-play on Opel / Vauxhall models with the standard OBD2 port. No adapter needed.
Questions about your exact model year? Confirm compatibility by VIN before you order.
Contact Support →Everything you need to know.
Permanent hardware failures require physical repair first.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the i902 from Opel / Vauxhall owners, mechanics and channels — see the unit running live diagnostics and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the i902 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Opel / Vauxhall models and functions the i902 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
