iCarsoft LR V2.0
The LR V2.0 covers every Jaguar and Land Rover system — from engine and transmission to airbag and ABS —providing comprehensive OE-level diagnostic scans, 9 essential service reset functions, and lifetime free software updates. It is the ultimate plug-and-play maintenance companion compatible with Jaguar and Land Rover models from 1996 to 2025.
Built for the workshop, not the showroom.

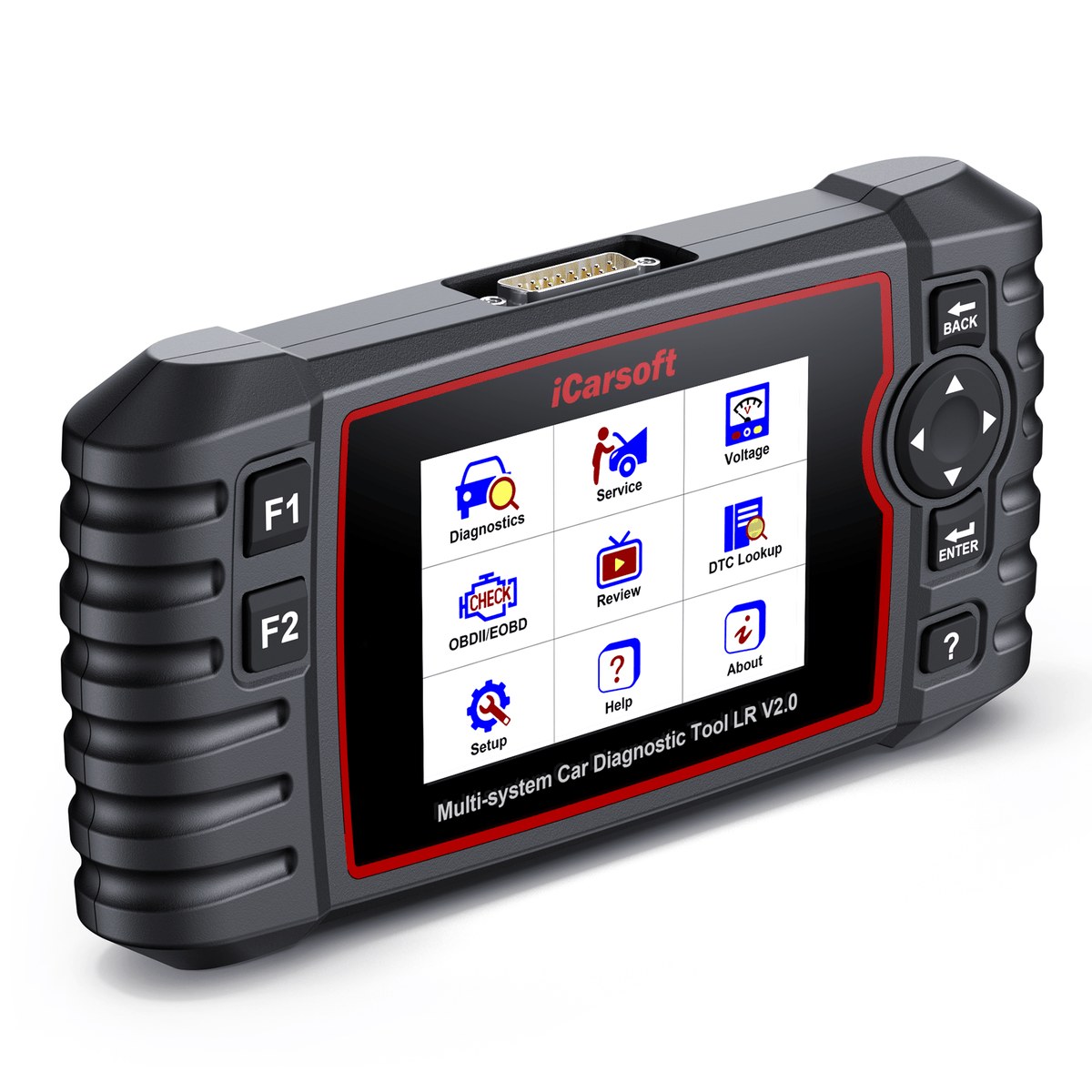

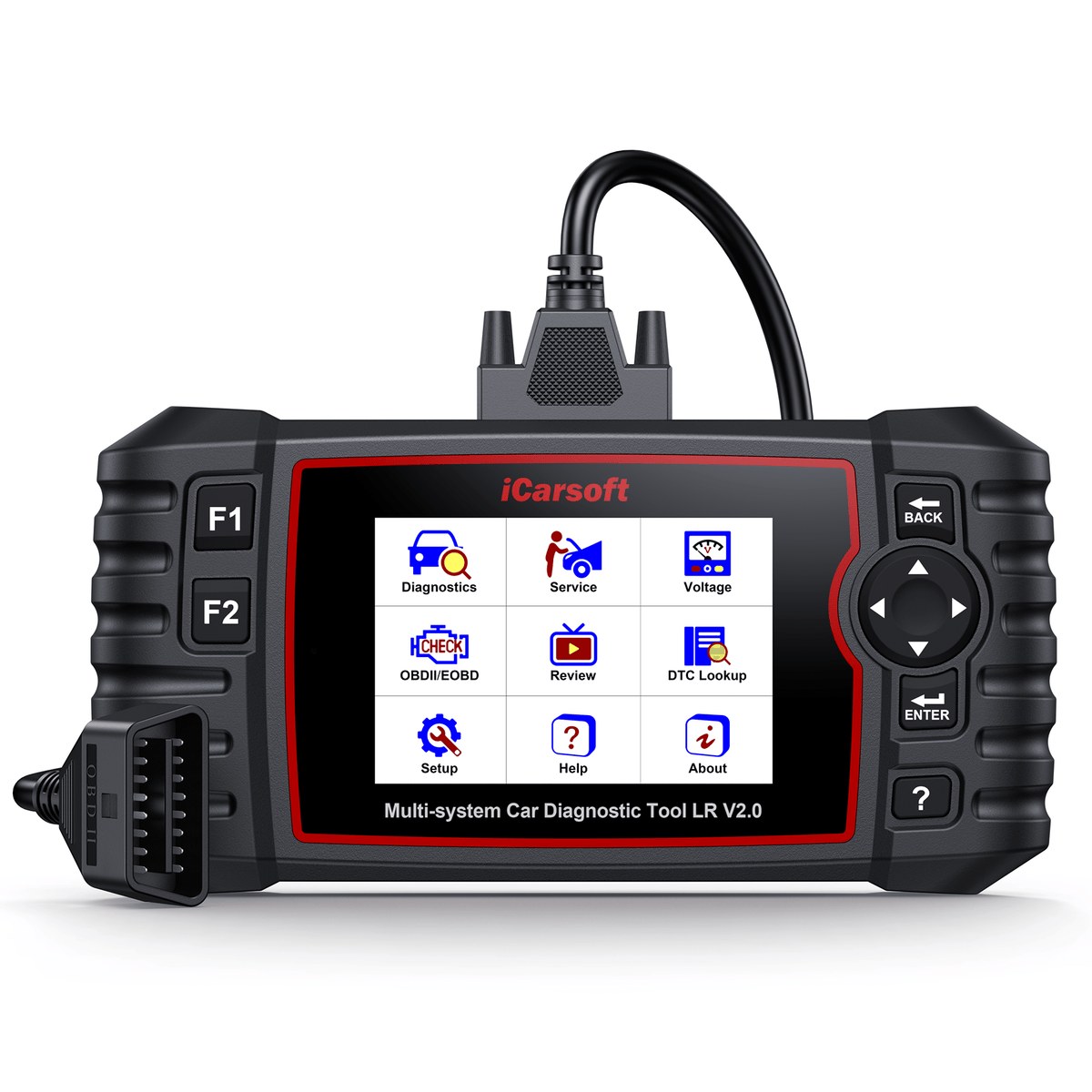

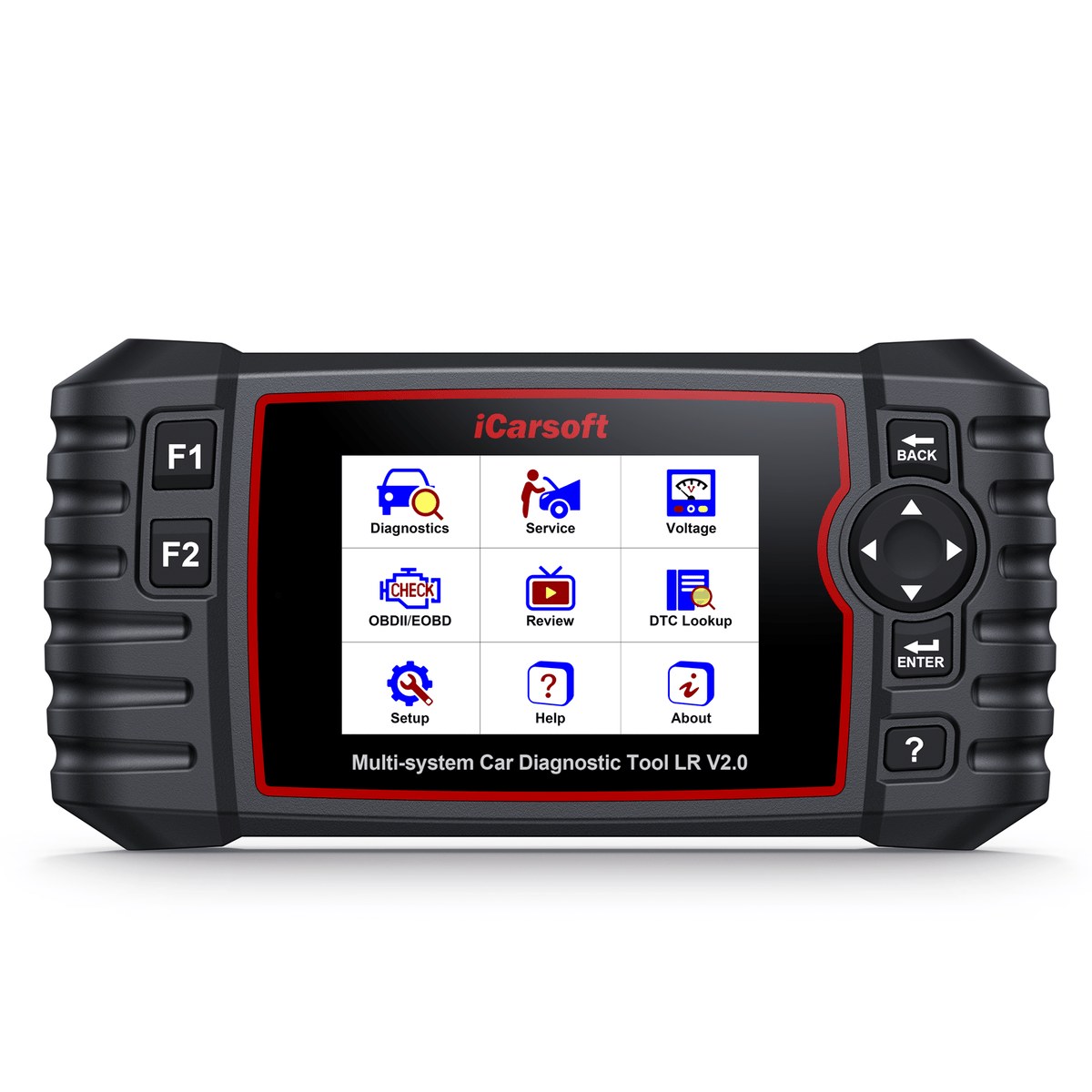

The iCarsoft LR V2.0 features a vibrant 4-inch screen and intuitive button navigation for quick, effortless menu browsing. It also comes standard with a dedicated card reader, making software and vehicle database updates entirely seamless via your PC. No Wi-Fi needed — update anytime via the included card reader and your PC.
The last update bill you'll never receive.
Unlike other OBD scan tools on the market that require annual subscription fees, the LR V2.0 offers lifetime free software upgrades.
UPDATE PLANReady for the next generation before it arrives.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation communication protocol increasingly adopted by modern Jaguar and Land Rover vehicles.
What is CAN-FD?
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation evolution of the classic CAN bus, now adopted across the newest Jaguar / Land Rover platforms.
- Flexible Data-Rate: Transfers larger data frames at faster speeds than classic CAN, keeping up with modern vehicle electronics.
- Adopted by Jaguar / Land Rover: The communication standard used on the brands' latest chassis generations.
CAN-FD Ready, Out of the Box
- Native CAN-FD Support: Talks the Jaguar / Land Rover CAN-FD protocol directly from the standard OBD2 port.
- Newest Models Covered: Keeps the LR V2.0 connected to the latest chassis in its 1996–2025 coverage range.
One Tool, Every Protocol
CAN-FD is only the newest layer — the LR V2.0 speaks the full range of protocols used across three decades of Jaguar / Land Rover models.
- Beyond CAN-FD: Also supports classic CAN (ISO 11898 high/medium/low-speed & single-wire), K/L-Line, ISO 9141-2, ISO 14230-2, ISO 15765, SAE-J1850 and more.
- Old or New, One Connector: Standard 16-pin OBD2 covers 2001+ models; pre-2001 models connect via the optional 20-pin adapter.
One plug and your Rover says its name.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
One-Plug Identification
- Automatic VIN Read: Simply plug into the OBD2 port and the LR V2.0 identifies your BMW, Mini or Rolls-Royce in seconds.
- No Extra Lookup Time: Skip manual VIN typing and model-menu digging entirely — go straight to diagnostics.
Accuracy Built In
- Eliminates Input Errors: No typos means the scanner always loads the exact software profile for your vehicle.
- Smoother, More Reliable Sessions: Correct identification from the first second delivers a more reliable diagnostic experience.
Manual Selection Backup
AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, it doesn't mean the device is faulty — you always have a second way in.
- Manual Selection Mode: Pick your model from the menu and every diagnostic and service function works exactly the same.
- Growing VIN Database: Send your VIN to the support team and it will be verified and added in the next software update.
Fifteen languages, one fluent tool.
The Jaguar / Land Rover scanner LR V2.0 supports 15 interface languages — pick yours from the list below.
Nine dealer visits you can cross off the list.
The LR V2.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Beyond the big four — into every module.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the LR V2.0 provides diagnostic coverage for more complex vehicle systems.
Read & Clear Codes and Freeze Frame
- Read and Clear DTCs: Pull trouble codes from every supported system and clear them once the repair is done.
- Read and Clear Freeze Frame Data: Review the exact sensor snapshot captured when a fault occurred, then clear it after servicing.
Live Data & ECU Information
- Read Live Data: Watch real-time sensor values and parameter streams while the vehicle is running.
- Read ECU Information: View each control module's identification details for accurate servicing and part matching.
Every Module, One Connector
Full-system coverage means the LR V2.0 doesn't stop at the powertrain — it reaches the complex body, chassis and driver-assistance modules too.
- Access all ECU modules via OBDII-16 DLC: Reach every module on the vehicle through the standard 16-pin diagnostic connector.
Walk into the emission test already knowing the result.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.
Your diagnostic paper trail, built automatically.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.
Every spec, on the record.
| Display | 4.0-inch TFT LCD color screen with 480 x 320 resolution |
| Connectivity | USB 2.0 / OBDII |
| Power | 9-18V |
| Type C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 206 × 104.1 × 32.6 mm (8.11 × 4.10 × 1.28 in) |
| Net Weight | ≈ 350 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

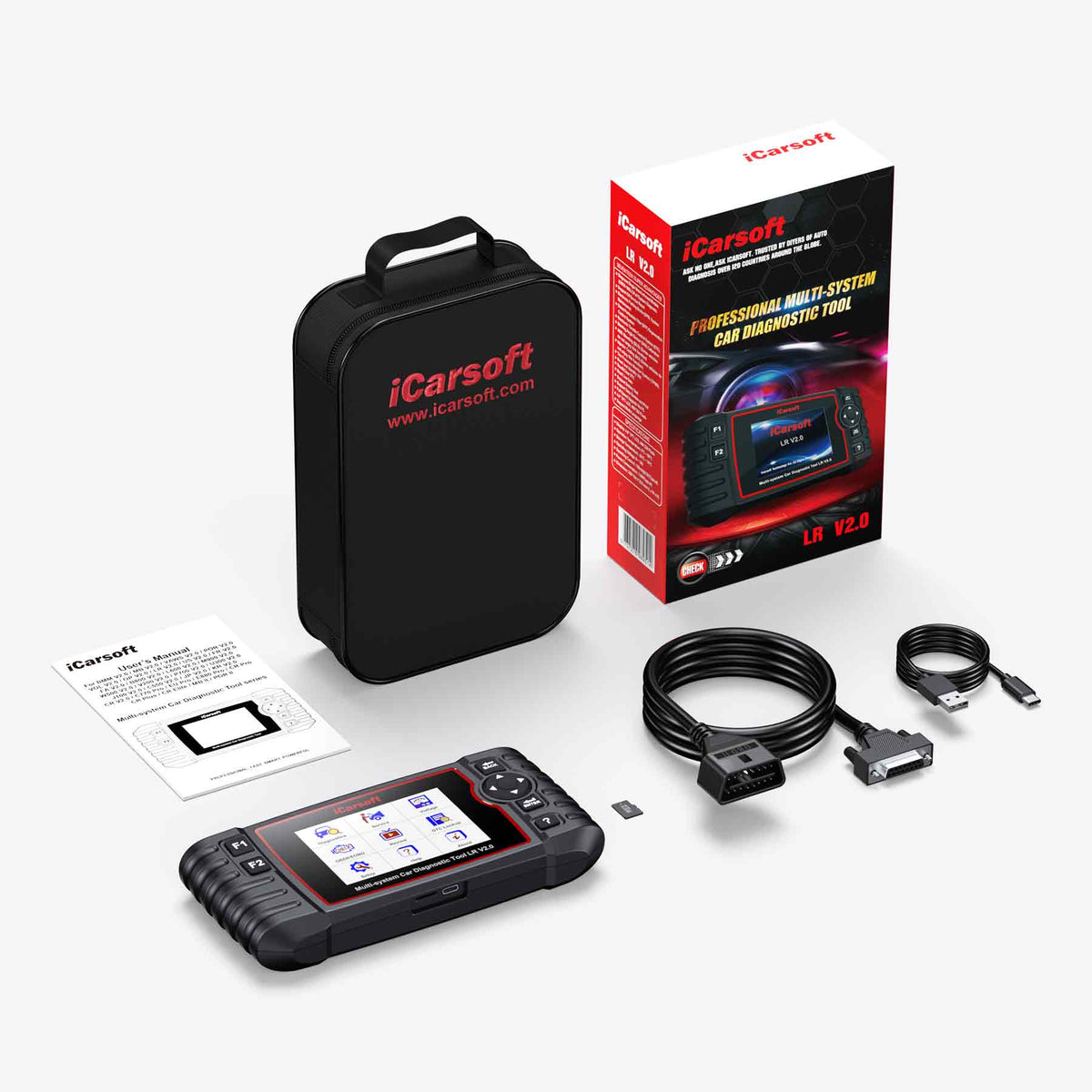

Open the box, start the scan.
Where the V2.0 sits in the LR family.
Every LR scanner carries the same trusted Jaguar / Land Rover coverage — the V2.0 is the smart-value generation with the full set of everyday service resets. Newer models add bi-directional control and more.
| Feature | LR V1.0 | LR V2.0 | LR V3.0 | LR V4.0 |
|---|---|---|---|---|
| Coverage | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 29 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Unsure whether a specific function is supported on your exact model year? Send us your VIN and we will confirm before you order.
Check by VIN →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the LR V2.0 from Jaguar / Land Rover owners, mechanics and channels — see the unit running live diagnostics and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the LR V2.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Jaguar / Land Rover models and functions the LR V2.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
