iCarsoft LR V4.0
The LR V4.0 covers every Jaguar / Land Rover system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bidirectional control, 38 service functions, and lifetime free software updates. Compatible with Jaguar / Land Rover models from 1996 to 2025.
Unbox it for Jaguar & Land Rover — then claim two more brands, free.
The iCarsoft LR V4.0 comes pre-installed with software for Jaguar / Land Rover, making it ready to use right out of the box. 2 further vehicle groups can be downloaded when you need it free of charge.
Pre-installed
Free Downloads
Downloaded free of charge, whenever you need them — no extra cost, ever.
Total Coverage
Pay once and cover the brands you actually service — far beyond Jaguar & Land Rover.

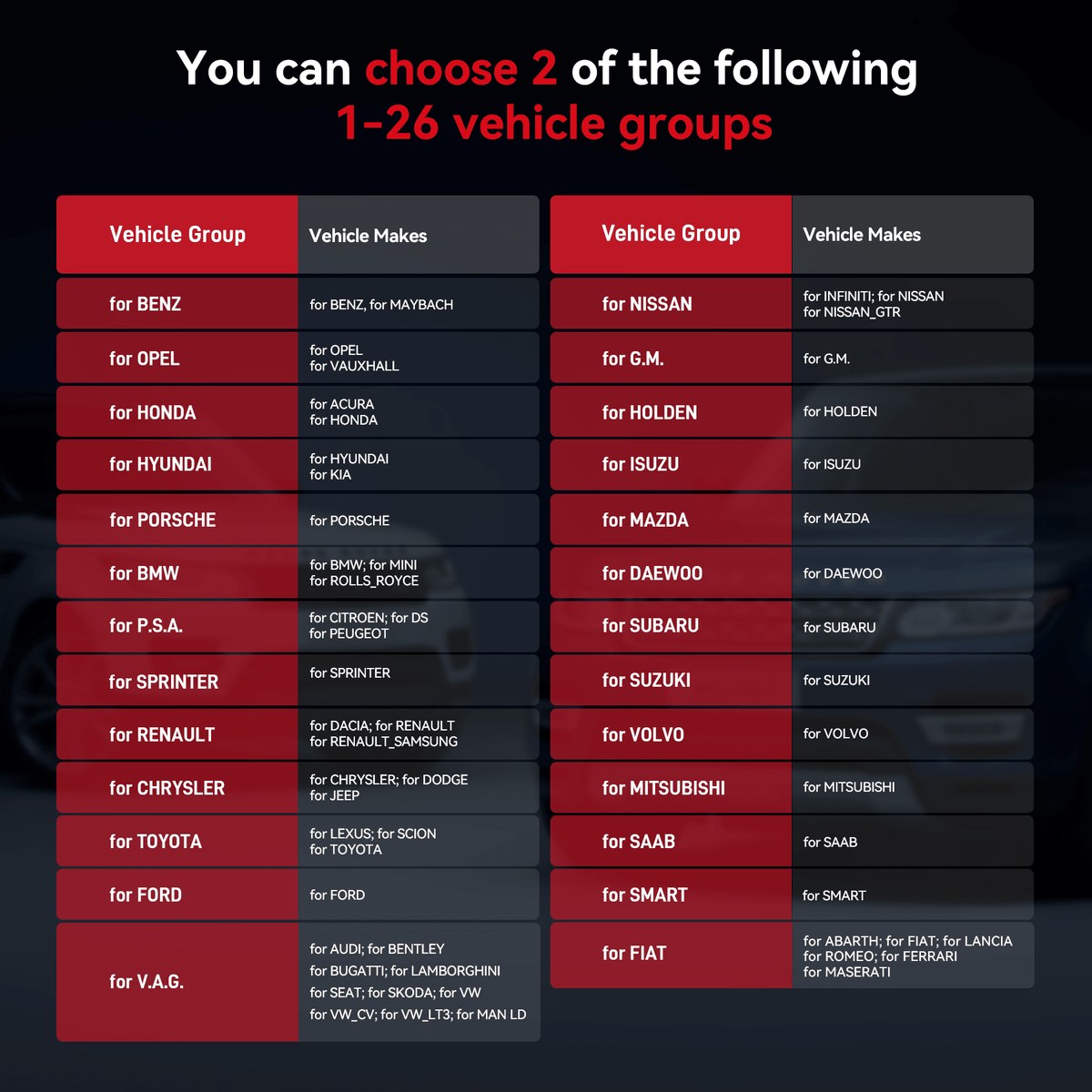

Vehicle Groups Available for Selection
PICK ANY 2 · FREE OF CHARGEIt doesn’t just read codes — it commands your car.
The LR V4.0 doesn't just read codes—it talks directly to your car. This professional-grade scanner sends active commands straight to individual vehicle modules and watches them respond in real time, bypassing the cabin switches entirely.
Body & Comfort Active Tests
Imagine a power window won't roll up. Is it a broken door switch, a blown fuse, or a dead motor? Instead of ripping apart the door panel to test wires, you just tap the screen on your LR V4.0. If the window rolls down, you know the motor is perfectly fine and the switch is the culprit. No more guesswork, no more buying parts you don't need.
- Command Window Regulators: Drive windows up and down straight from the scanner to isolate bad switch clusters in seconds.
- Trigger Door Locks & Side Mirrors: Actuate locks and mirrors on demand to pinpoint body control module glitches.
Powertrain & Fuel Active Tests
Send commands straight to the engine-side modules and watch each component respond in real time — no cabin switches, no waiting for the fault to reappear.
- Kick On the Fuel Pump: Activate the fuel pump instantly to verify fuel pressure dropping issues.
- Modulate Throttle Opening: Sweep the throttle to check for sticking carbon deposits.
Chassis & Brake Active Tests
Take direct control of the hydraulic hardware that normally only responds while driving — essential for a proper brake service.
- Cycle the ABS Pump Motor: Run the pump on command to purge trapped air during brake bleeding.
Dynamic Output Tests
Beyond the headline tests, the LR V4.0 can exercise nearly every electrically driven component on the car.
- Any Actuator or Solenoid: Run dynamic output tests on virtually any onboard actuator or solenoid in minutes.
- Confirm Before You Buy: Watch the module respond live and confirm the failed part before ordering a replacement.

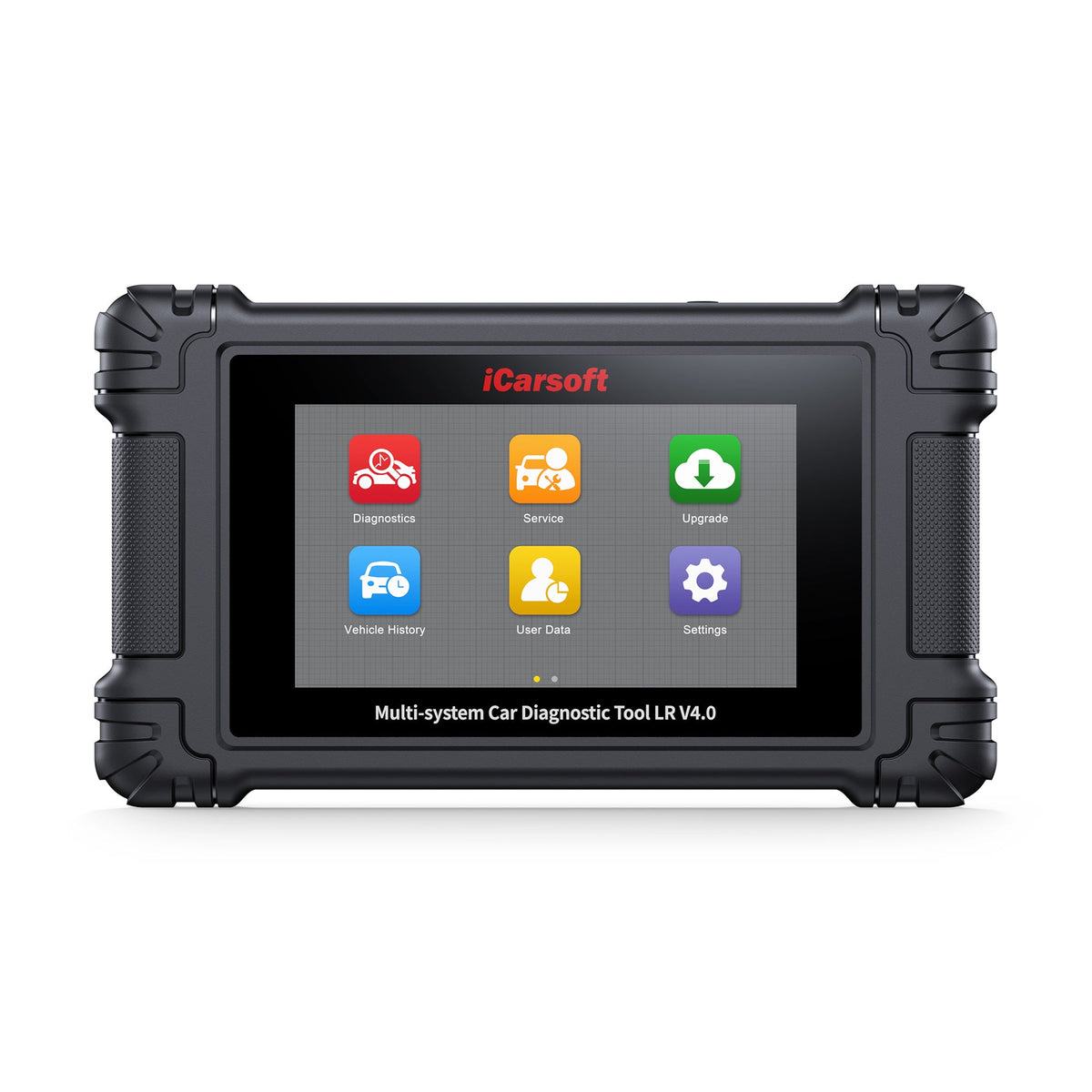

A 5-inch Android tablet built to run all day in the bay.
iCarsoft LR V4.0 car diagnostic tool is equipped with a 5-inch HD Touch Screen, Android operating system, Quad Core 1.3 GHz processor, 32GB memory and a 5000mAh battery for around 6 hours of continuous use. It offers a user-friendly interface and an ultra-smooth diagnostic experience.
Pay once. Upgrade forever — no subscription, ever.
Unlike other OBD scan tools on the market that require annual subscription fees, the LR V4.0 offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
UPDATE PLANReady for the newest Jaguar & Land Rover communication standard.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Jaguar / Land Rover.
What is CAN-FD?
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation evolution of the classic CAN bus, now adopted across the newest Jaguar / Land Rover platforms.
- Flexible Data-Rate: Transfers larger data frames at faster speeds than classic CAN, keeping up with modern vehicle electronics.
- The New Factory Standard: Adopted by Jaguar / Land Rover on the latest platforms.
CAN-FD Ready, Out of the Box
- Native CAN-FD Support: Talks the CAN-FD protocol directly from the standard OBD2 port.
- Newest Models Covered: Keeps the LR V4.0 connected to the latest Jaguar / Land Rover chassis in its coverage range.
One Tool, Every Protocol
CAN-FD is only the newest layer — the LR V4.0 speaks the full range of protocols used across decades of Jaguar / Land Rover models.
- Beyond CAN-FD: Also supports classic CAN, K/L-Line and the other factory protocols listed in the full specifications below.
- Old or New, One Tool: From early CAN models to today's CAN-FD platforms, the LR V4.0 selects the right protocol for the car.
Plug in. Your Jaguar or Land Rover names itself in seconds.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
One-Plug Identification
- Automatic VIN Read: Simply plug into the OBD2 port and the LR V4.0 identifies your vehicle in seconds.
- No Extra Lookup Time: Skip manual VIN typing and model-menu digging entirely — go straight to diagnostics.
Accuracy Built In
- Eliminates Input Errors: No typos means the scanner always loads the exact software profile for your vehicle.
- Smoother, More Reliable Sessions: Correct identification from the first second delivers a more reliable diagnostic experience.
Manual Selection Backup
AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, it doesn't mean the device is faulty — you always have a second way in.
- Manual Selection Mode: Pick your model from the menu and every diagnostic and service function works exactly the same.
- Growing VIN Database: Send your VIN to the support team and it will be verified and added in the next software update.
Diagnose in your language, wherever you wrench.
Jaguar / Land Rover scanner LR V4.0 supports English, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish, and Finnish.
Far more than a basic code reader.
The LR V4.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 29 advanced professional functions for complex repair tasks.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
Initializes the adaptive headlamp system.
Supports routine maintenance of DSC modules, including resetting or deleting adaptation values, and initializing the unit.
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Performs calibration after repairing or replacing the seat position drive motor.
Resets airbag data to clear the airbag (SRS) warning light after a collision.
Anti-theft Matching, disable any lost keys and add new keys. ONLY for vehicles with basic Immobilizer system.
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
Adjusts the engine idle speed.
Reads and verifies odometer values stored across multiple ECUs. (Note: this function does not alter mileage; it is intended for lawful service and verification only.)
Performs turbocharger learning after component replacement, or resets stored learned values.
Recirculates a portion of engine exhaust gas back into the intake system.
Performs full calibration after window lift motor repair or replacement.
Resets the AdBlue (urea) level counter after the diesel exhaust fluid is refilled or replaced.
Performs crankshaft position learning and related calibration after engine repair.
Learns the clutch contact point and engagement position where the clutch begins to transmit engine torque. Applicable after ECU replacement, transmission removal/replacement, or clutch replacement. For adaptive clutches only.
Used for learning and calibration of heads-up display.
Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
Changes the vehicle's system language.
Calibrates the rain sensor after windshield replacement or sensor renewal.
Performs radar and camera learning and calibration (ADAS).
Tests each engine cylinder individually by disabling its fuel supply — useful for diagnosing cylinder-specific issues such as misfires or low compression.
Sets or removes the vehicle's maximum speed limit.
Supports oxygen sensor replacement adaptation and initializes the three-way catalytic converter learned values.
Performs seatbelt pretensioner reset and related maintenance after airbag deployment.
Checks and compares odometer data stored across multiple ECUs to detect mileage tampering.
Reads and matches the VIN across all vehicle ECUs to detect inconsistencies or unauthorized module replacement.
Additional service functions are available in the Miscellaneous section.
Reach every ECU — not just the four standard systems.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the LR V4.0 provides diagnostic coverage for more complex vehicle systems.
Codes & Freeze Frame
- Read and Clear DTCs: Pull diagnostic trouble codes from every supported system and clear them once the repair is done.
- Read and Clear Freeze Frame Data: Review the exact sensor snapshot captured at the moment a fault occurred, then clear it after servicing.
Live Data & ECU Info

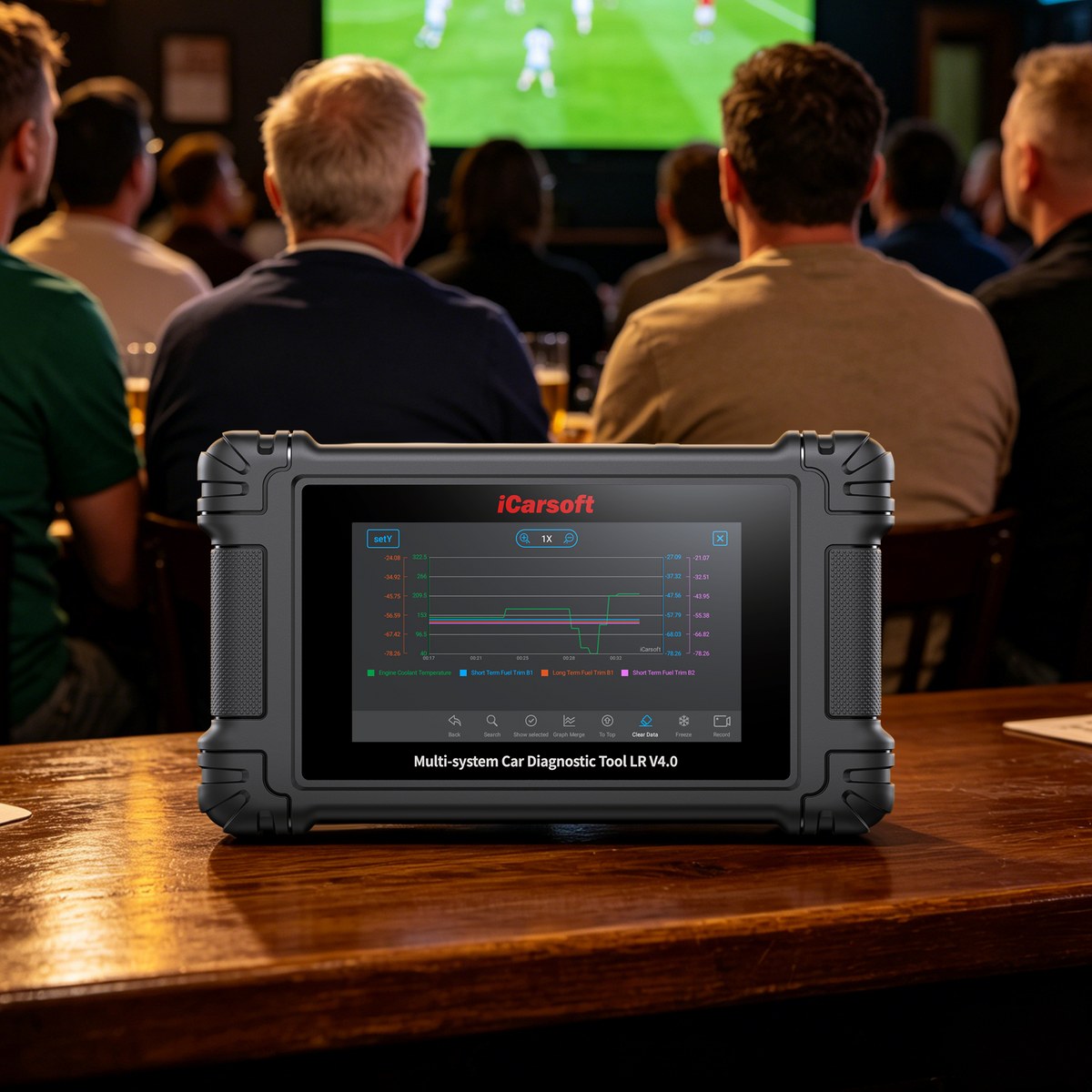

- Read Live Data: Watch real-time sensor values and parameter streams while the vehicle is running.
- Read ECU Information: View each control module's identification details for accurate servicing and part matching.
All-Module Access
Full-system coverage means the LR V4.0 doesn't stop at the powertrain — it reaches the complex body, chassis and driver-assistance modules too.
- Access All ECU Modules via OBDII-16 DLC: Reach every module on the vehicle through the standard 16-pin diagnostic connector.
- Beyond the Big Four: Diagnostic coverage extends past Engine, ABS, Airbags and Transmission into more complex vehicle systems.
Dealer-grade adaptations, right in your hands.
Calibrates the yaw rate sensor to OE standards after replacement or alignment — equivalent to the dealer SDD procedure.
Wipes learned shift patterns to reset ECM/TCM adaptive, instantly curing harsh shifts and restoring factory-smooth drivability.
Forces the PCM to relearn precise physical endpoints for throttles and blend doors, fixing erratic idles and ghost climate-control issues.
Re-indexes all cabin blend-door actuators and temperature flaps simultaneously with a single tap, slashing hours off tedious dashboard overhauls.
Overrides and clears protective climate-control codes triggered by low voltage or low freon, unlocking the A/C clutch without a trip to the dealer.
Every emission check, all ten modes, ready to pass.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor, and EVAP System Test.
Save it, share it, print it — every job on record.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Connect the device to a Windows PC via USB and print diagnostic data for future reference.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.

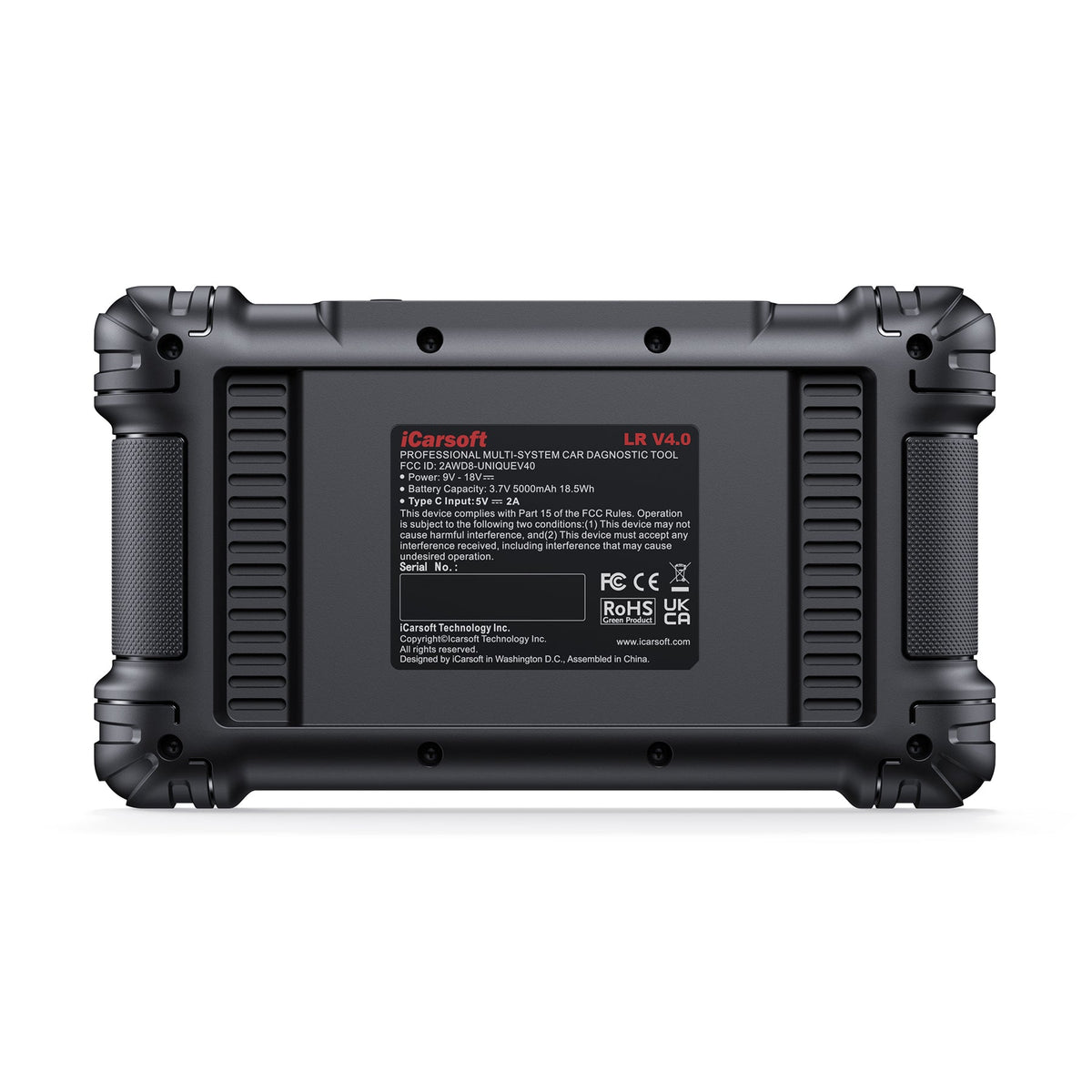

Every detail, on the record.
| Operating System | Android |
| Processor | Quad Core 1.3 GHz |
| Storage | 32GB |
| Display | 5-inch LCD capacitive touchscreen with 854x480 resolution |
| Connectivity | USB 2.0 / Wi-Fi (2.4GHz) / OBDII |
| Power | 9-18V |
| Operating Current | ≤500mA |
| Battery Capacity | 3.7V 5000mAh 18.5Wh |
| Tested Battery Life | Around 6 hours of continuous use |
| Type C Input | 5V / 2A |
| Power Consumption | 500mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 200 × 116 × 30.2 mm (7.87 × 4.57 × 1.19 in) |
| Net Weight | ≈ 380 g |
Everything you need, right in the box.
Note: Use the charger you already own — no extra e-waste. The LR V4.0 can be charged using any standard USB-C charger (5V/2A recommended) or a computer's USB port.
See how far V4.0 pulls ahead of V1.0, V2.0 and V3.0.
Every LR scanner carries the same trusted Jaguar & Land Rover coverage — V4.0 adds the 5-inch touchscreen, Wi-Fi updates, full bidirectional control and the complete set of high-level service functions.
| Feature | LR V1.0 | LR V2.0 | LR V3.0 | LR V4.0 |
|---|---|---|---|---|
| Coverage | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover | Jaguar Land Rover +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB / Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 29 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.

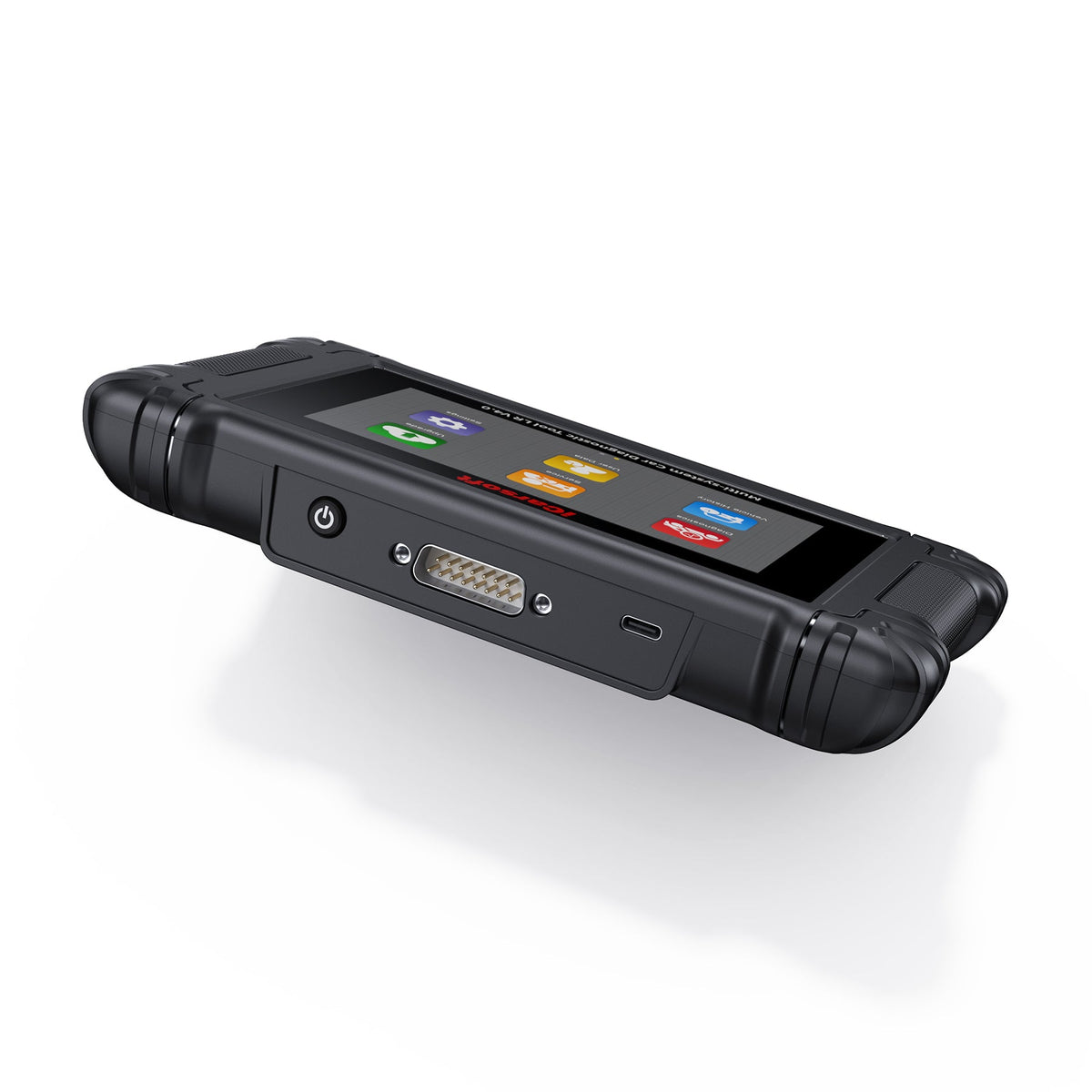

Standard 16-Pin OBD2
Built in on every LR V4.0 — plug-and-play on Jaguar and Land Rover models equipped with the standard 16-pin OBD2 diagnostic port. No adapter needed.
Jaguar & Land Rover
Full-system coverage for Jaguar and Land Rover from 1996 to 2025, including the entire Range Rover family — engine, transmission, ABS, airbag and ECU adaptations.
Two More Make Groups
Download any 2 of the additional vehicle make groups free of charge, whenever you need to service brands beyond Jaguar and Land Rover.
Not sure whether your vehicle is supported? Send us your VIN and our support team will confirm coverage before you buy.
Verify by VIN →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the LR V4.0 from Jaguar & Land Rover owners, mechanics and channels — see the unit running live diagnostics, bidirectional tests and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the LR V4.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Jaguar and Land Rover models and functions the LR V4.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
