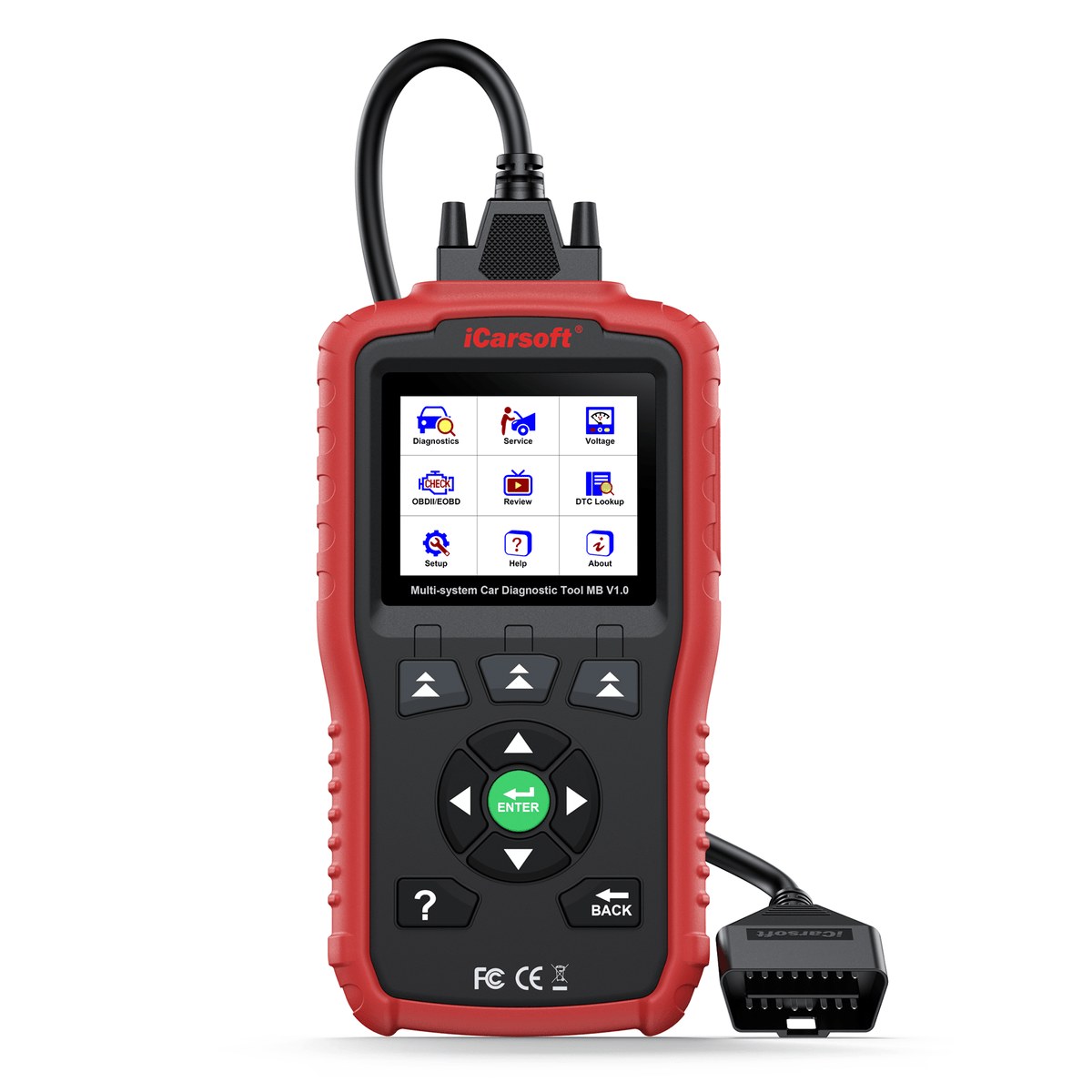

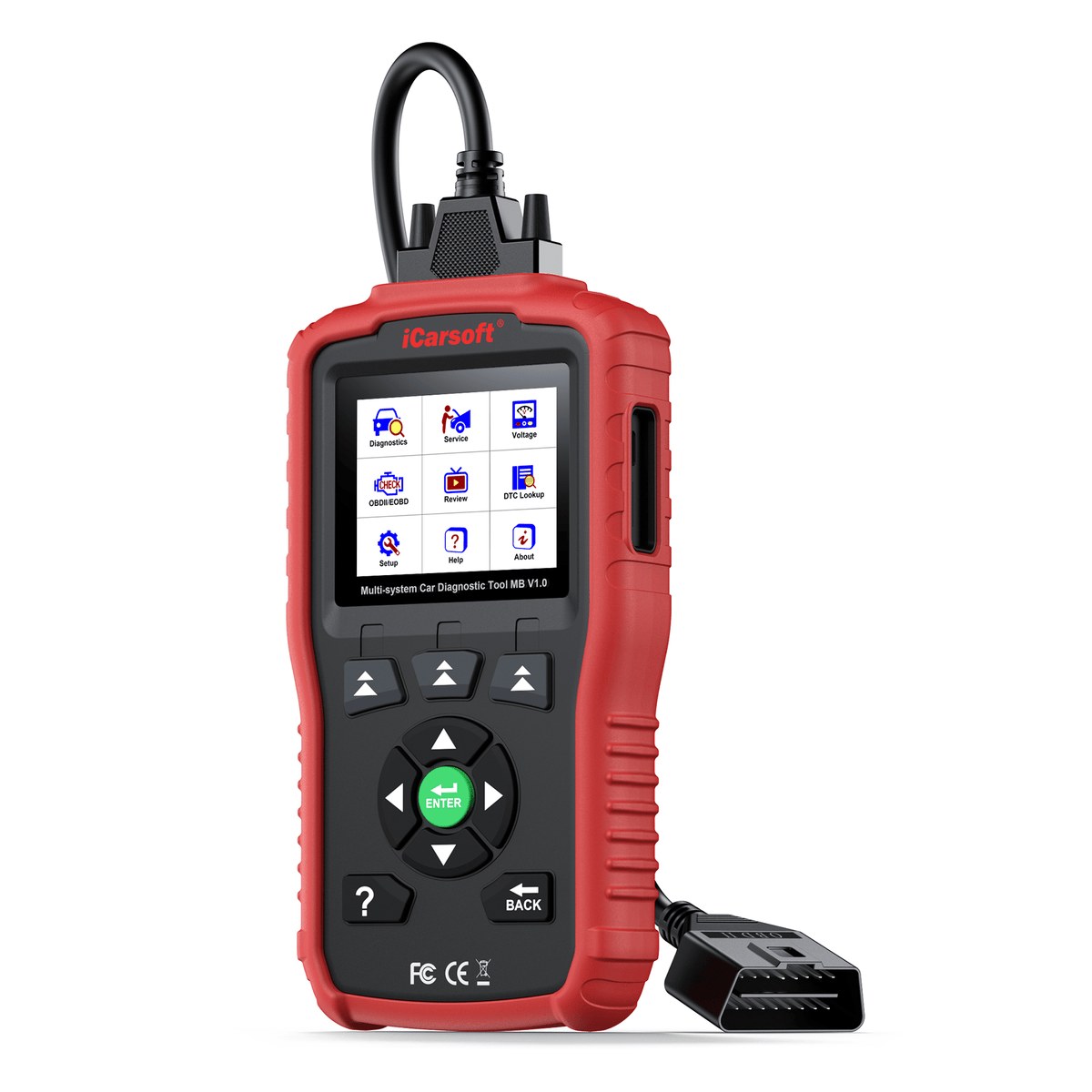

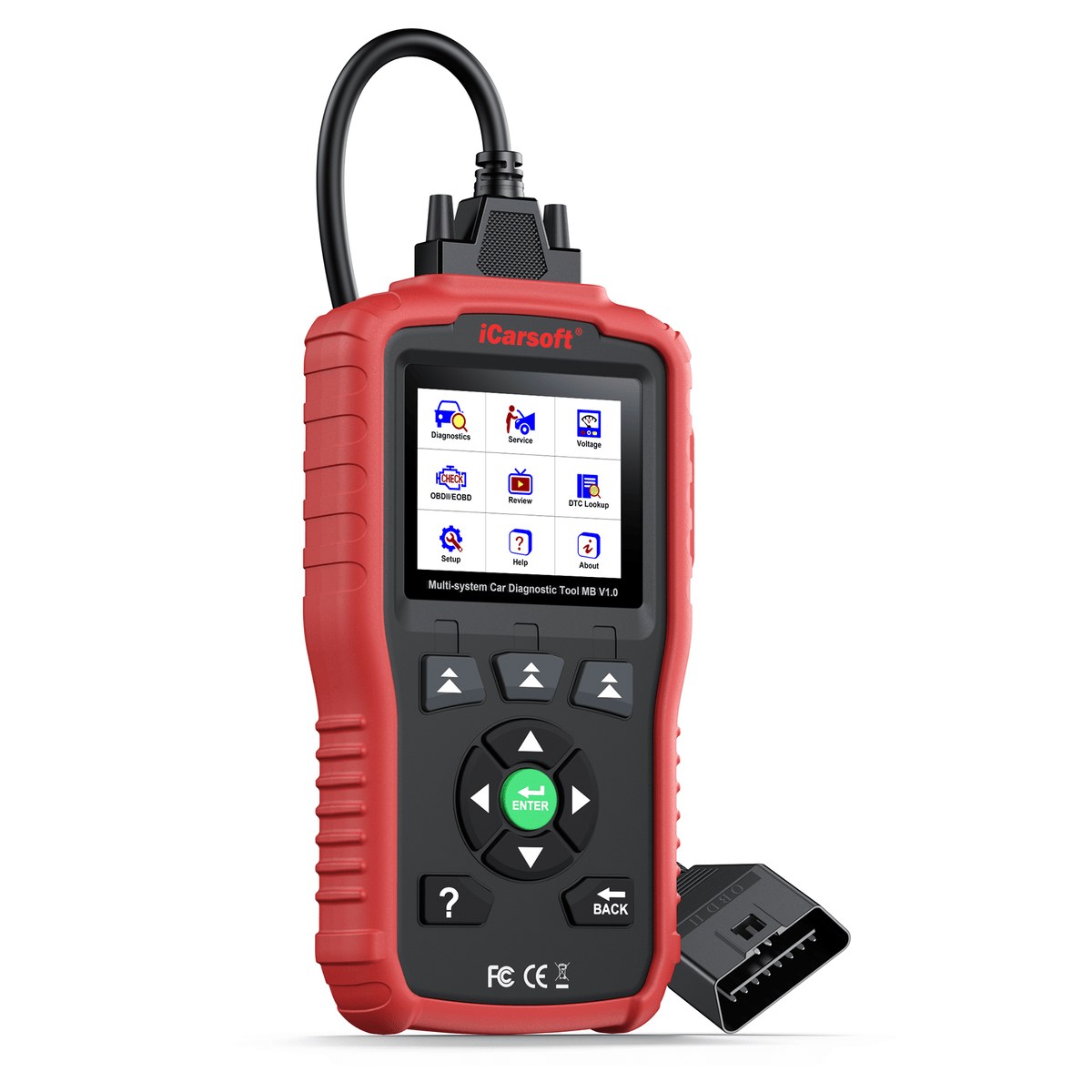

iCarsoft MB V1.0
The iCarsoft MB V1.0 delivers professional, OE-level diagnostics across a wide range of Mercedes electronic systems— from engine and transmission to airbag and ABS. Engineered specifically for Mercedes-Benz, Sprinter, Smart, and Maybach (1996–present), this standalone scanner packs 2 essential service reset functions and lifetime free software updates into a rugged, plug-and-play design. It is a smart and budget-friendly maintenance companion for everyday owners and DIY enthusiasts.

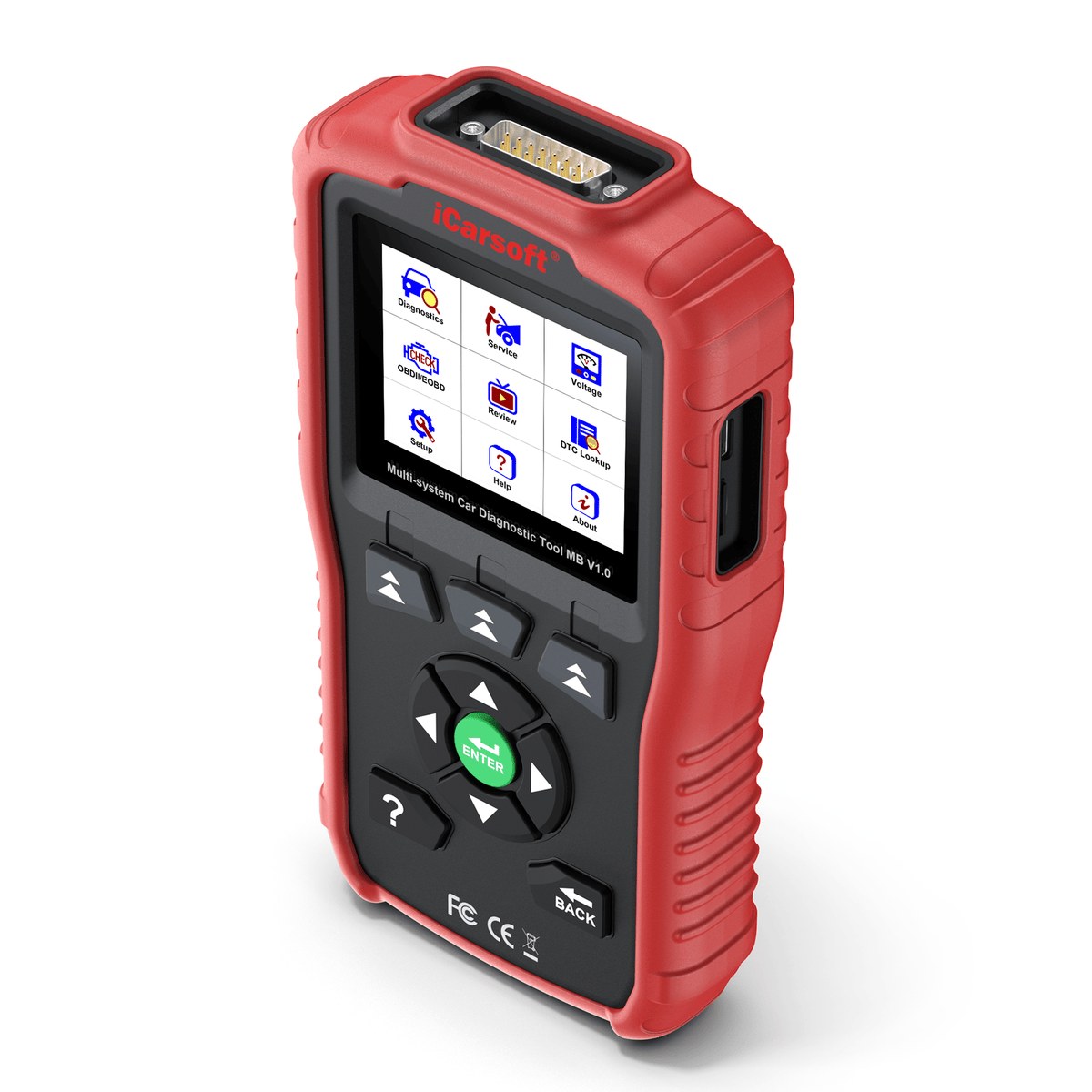

Solid in the hand. Instant on the screen.

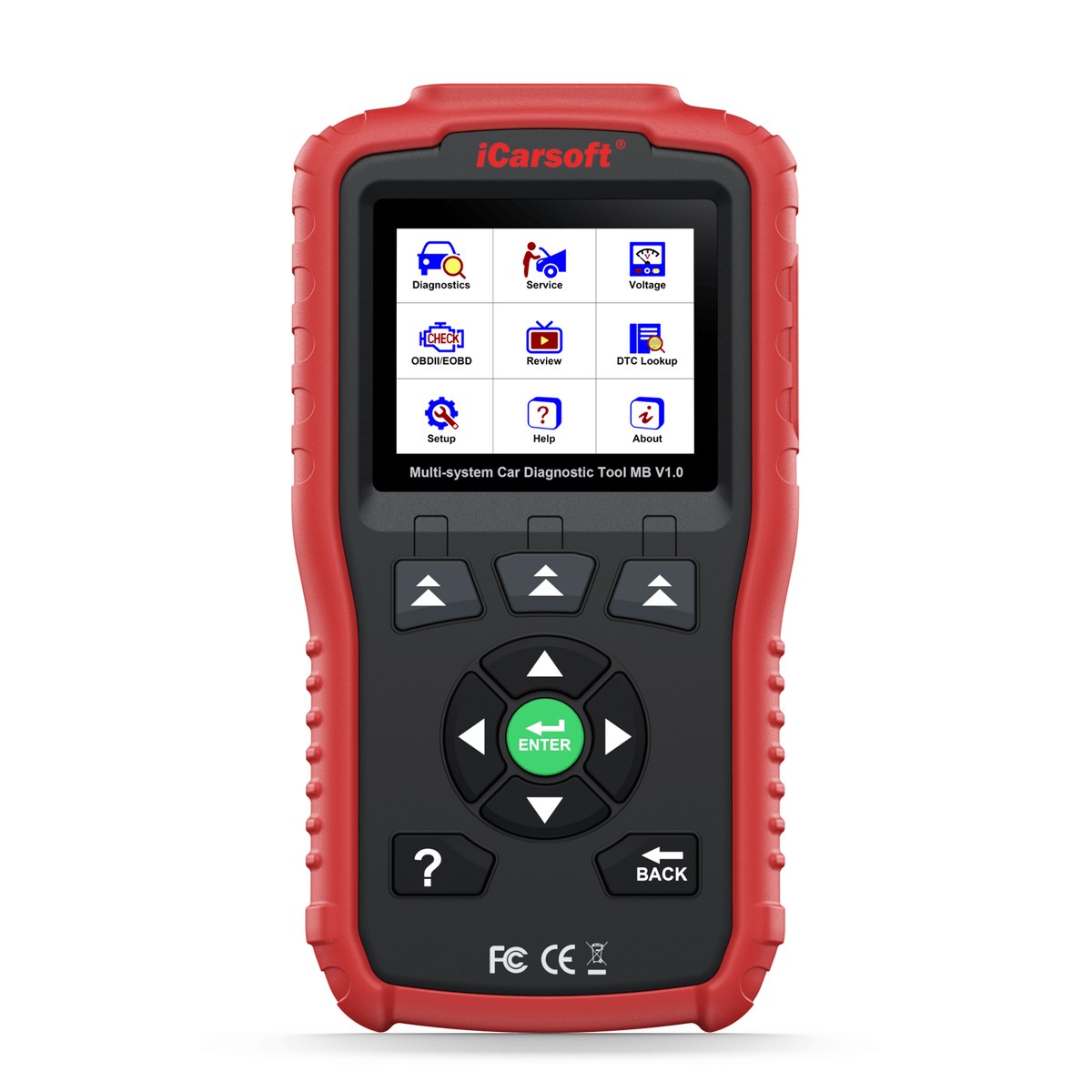

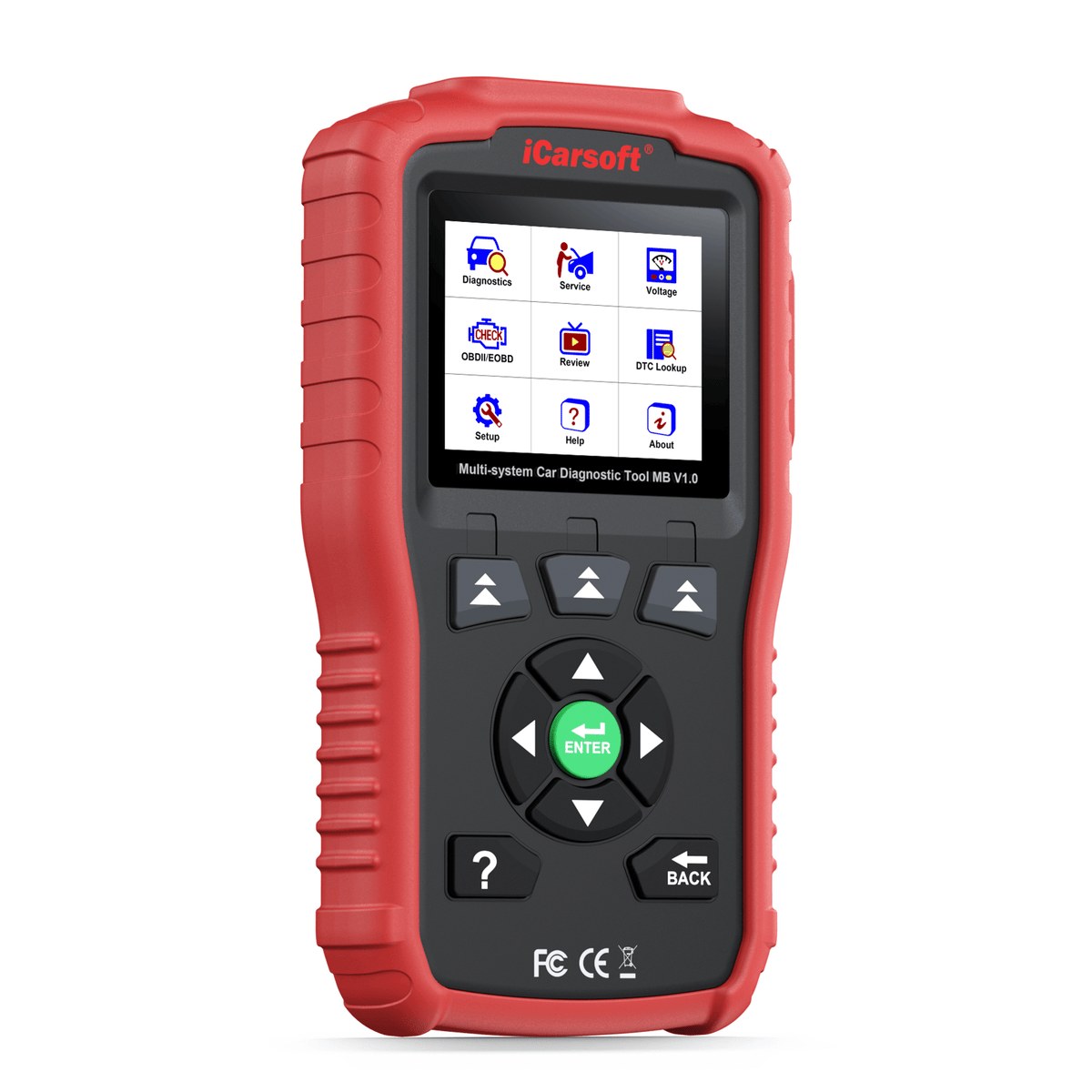

The iCarsoft MB V1.0 features a vibrant 2.8-inch screen and intuitive button navigation for quick, effortless menu browsing. Supports seamless software and vehicle-database updates — no Wi-Fi needed, just update anytime via your PC.
Buy it once. Keep it current forever.
Unlike other OBD scan tools on the market that require annual subscription fees, the MB V1.0 offers lifetime free software upgrades.
UPDATE PLANFluent in the newest language your car speaks.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Mercedes-Benz starting from 2020.
What is CAN-FD?
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation evolution of the classic CAN bus, now adopted across 2020+ Mercedes-Benz platforms.
- Flexible Data-Rate: Transfers larger data frames at faster speeds than classic CAN, keeping up with modern vehicle electronics.
- Adopted by Mercedes-Benz / Sprinter / Smart / Maybach: The communication standard used on the brand’s latest chassis generations.
CAN-FD Ready, Out of the Box
- Native CAN-FD Support: Talks the Mercedes-Benz / Sprinter / Smart / Maybach CAN-FD protocol directly from the standard OBD2 port.
- Newest Models Covered: Keeps the MB V1.0 connected to the latest chassis in its 1996–present coverage range.
One Tool, Every Protocol
CAN-FD is only the newest layer — the MB V1.0 speaks the full range of protocols used across three decades of Mercedes-Benz / Sprinter / Smart / Maybach models.
- Beyond CAN-FD: Also supports classic CAN (ISO 11898 high/medium/low-speed & single-wire), K/L-Line, ISO 9141-2, ISO 14230-2, ISO 15765, SAE-J1850 and more.
- Old or New, One Tool: Standard 16-pin OBD2 is included; pre-2003 Mercedes and early Sprinter vans connect via the optional 38-pin / 14-pin adapters.
Plug in — your Mercedes introduces itself.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
One-Plug Identification
- Automatic VIN Read: Simply plug into the OBD2 port and the MB V1.0 identifies your Mercedes-Benz, Sprinter, Smart or Maybach in seconds.
- No Extra Lookup Time: Skip manual VIN typing and model-menu digging entirely — go straight to diagnostics.
Accuracy Built In
- Eliminates Input Errors: No typos means the scanner always loads the exact software profile for your vehicle.
- Smoother, More Reliable Sessions: Correct identification from the first second delivers a more reliable diagnostic experience.
Manual Selection Backup
AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, it doesn't mean the device is faulty — you always have a second way in.
- Manual Selection Mode: Pick your model from the menu and every diagnostic and service function works exactly the same.
- Growing VIN Database: Send your VIN to the support team and it will be verified and added in the next software update.
Wrench in the language you think in.
Mercedes-Benz scanner MB V1.0 supports English, German, French, Dutch, Spanish, and Italian.
The two resets every Mercedes owner ends up needing.
The MB V1.0 is far more than a basic code reader. It integrates 2 commonly-used service functions for daily maintenance.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Every ECU on the bus, within reach.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the MB V1.0 provides diagnostic coverage for more complex vehicle systems.
Read & Clear Codes and Freeze Frame
- Read and Clear DTCs: Pull trouble codes from every supported system and clear them once the repair is done.
- Read and Clear Freeze Frame Data: Review the exact sensor snapshot captured when a fault occurred, then clear it after servicing.
Live Data & ECU Information
- Read Live Data: Watch real-time sensor values and parameter streams while the vehicle is running.
- Read ECU Information: View each control module's identification details for accurate servicing and part matching.
Every Module, One Connector
Full-system coverage means the MB V1.0 doesn't stop at the powertrain — it reaches the complex body, chassis and driver-assistance modules too.
- Access all ECU modules via OBDII-16 DLC: Reach every module on the vehicle through the standard 16-pin diagnostic connector.
Emission day, sorted in one pass.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test and Pending Codes.
Round plug? Early van? Still covered.
The smart auto diagnostic tool MB V1.0 also supports Mercedes-Benz models (with the 38-pin adapter) and early Sprinter vans (with the 14-pin adapter). The corresponding iCarsoft adapters are available separately.
38-pin Adapter
For pre-2003 Mercedes-Benz passenger vehicles with the 38-pin round diagnostic port — C-Class W202 (up to 2000), E-Class W210 (up to 2002), S-Class W140 (up to 1998), CLK-Class W208 (up to 2003), SLK-Class R170, SL-Class R129 (up to 2002) and other similar models.
14-pin Adapter
For Sprinter T1N and early NCV3 vans (1995-2006).
Not sure which port your car has? Check compatibility by VIN or contact our support team.
Shop Adapters →Every scan remembered, every report ready.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.
The numbers behind the confidence.
| Display | 2.8-inch TFT LCD color screen with 320 × 240 resolution |
| Operating Current | 150 mA @ 12 V (Typical) |
| Power | 9-18V |
| USB Type-C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 187.5 × 101 × 32 mm (7.38 × 3.98 × 1.26 in) |
| Net Weight | < 400 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

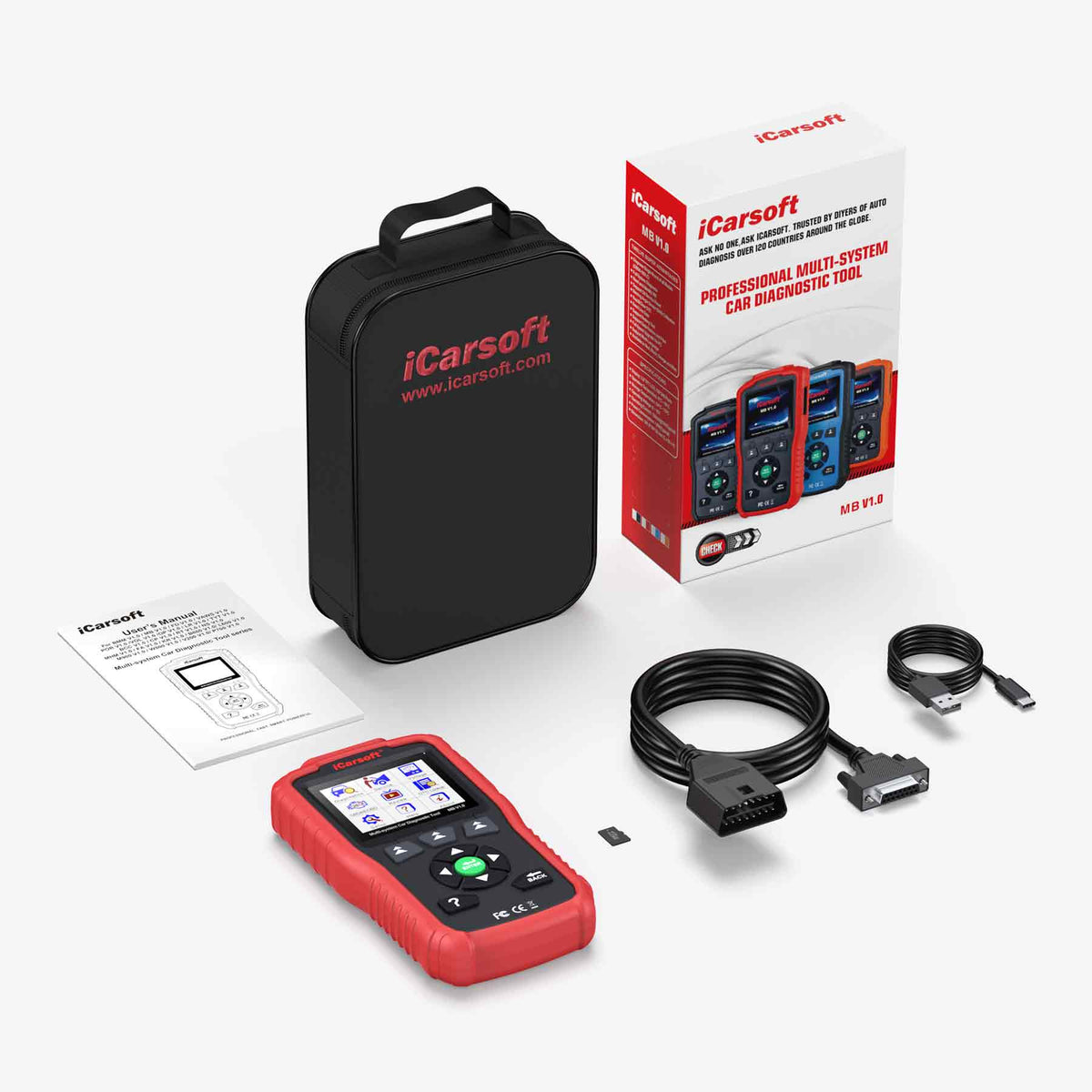

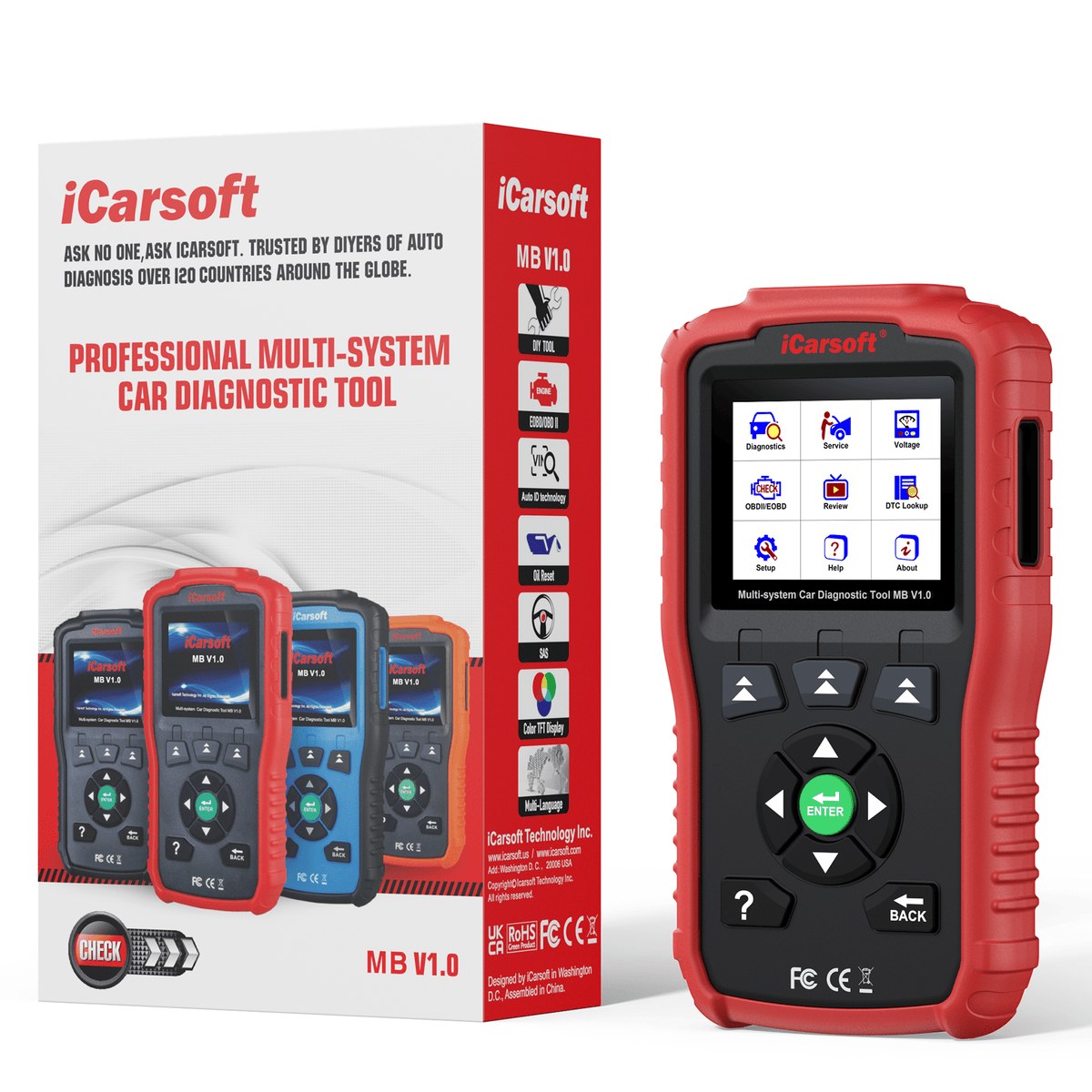

Everything you need, in the case.
Where the V1.0 sits in the MB family.
Every MB scanner carries the same trusted Mercedes-Benz / Sprinter / Smart / Maybach coverage — the V1.0 is the essential entry with the two most-used resets built in. Newer generations add more service functions, then bi-directional control.
| Feature | MB V1.0 | MB V2.0 | MB V3.0 | MB V4.0 |
|---|---|---|---|---|
| Coverage | Mercedes-Benz Sprinter Smart Maybach | Mercedes-Benz Sprinter Smart Maybach | Mercedes-Benz Sprinter Smart Maybach | Mercedes-Benz Sprinter Smart Maybach +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 32 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Standard 16-Pin OBD2
Built in on every MB V1.0 — plug-and-play on Mercedes-Benz / Sprinter / Smart / Maybach models with the standard OBD2 port. No adapter needed.
38-Pin & 14-Pin Adapters
For pre-2003 Mercedes-Benz round-port models and early Sprinter vans — see the exact model coverage in the Older Vehicle Connection Extensions section above.
Not sure which port your car has? Check compatibility by VIN or contact our support team.
Shop Adapters →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the MB V1.0 from Mercedes-Benz / Sprinter / Smart / Maybach owners, mechanics and channels — see the unit running live diagnostics and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the MB V1.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Mercedes-Benz / Sprinter / Smart / Maybach models and functions the MB V1.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
