iCarsoft VOL V3.0
The VOL V3.0 covers every Volvo/Saab system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bidirectional control, 28 service functions, and lifetime free software updates. Compatible with Volvo/Saab models from 1996 to 2025.
Every control where your thumb expects it.

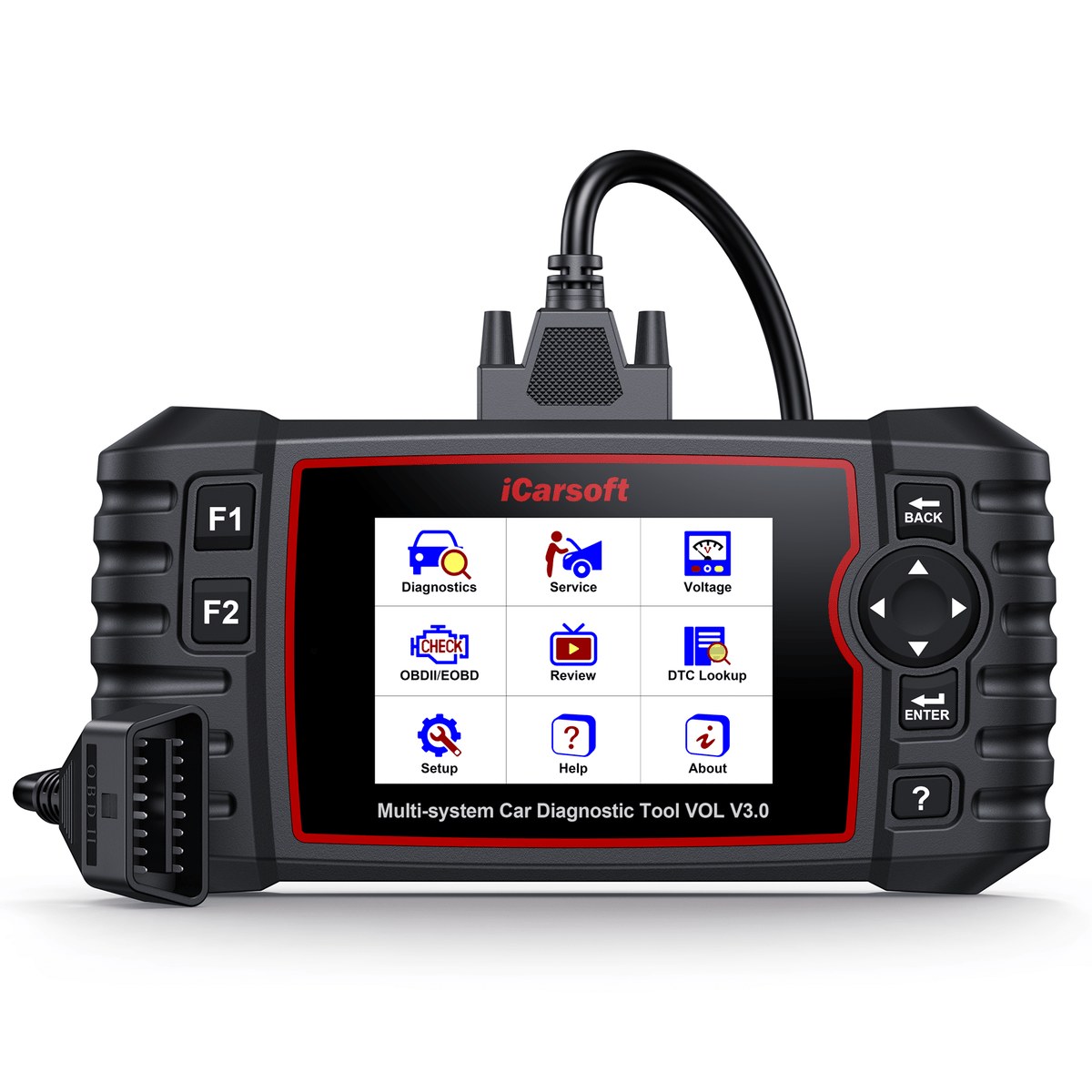

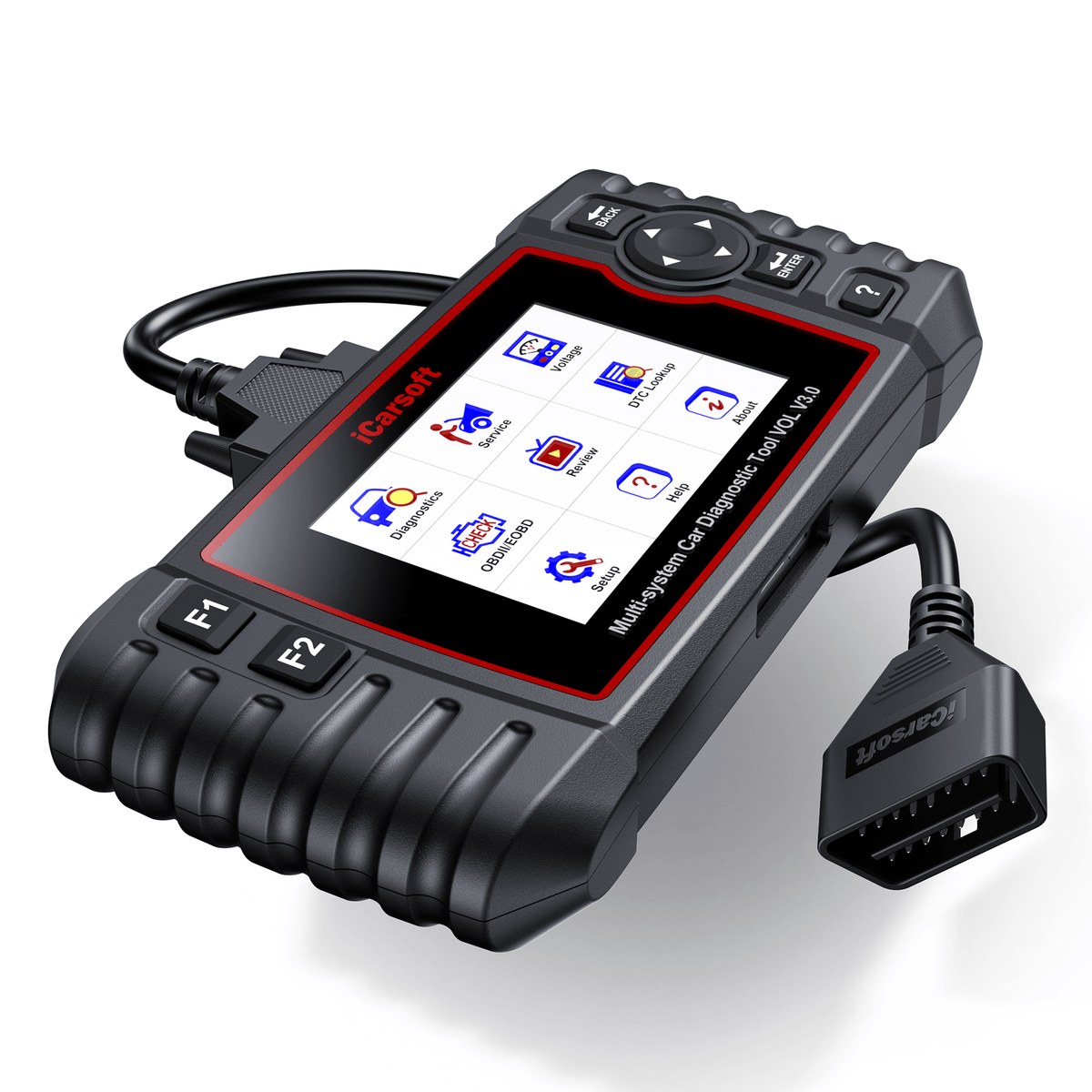

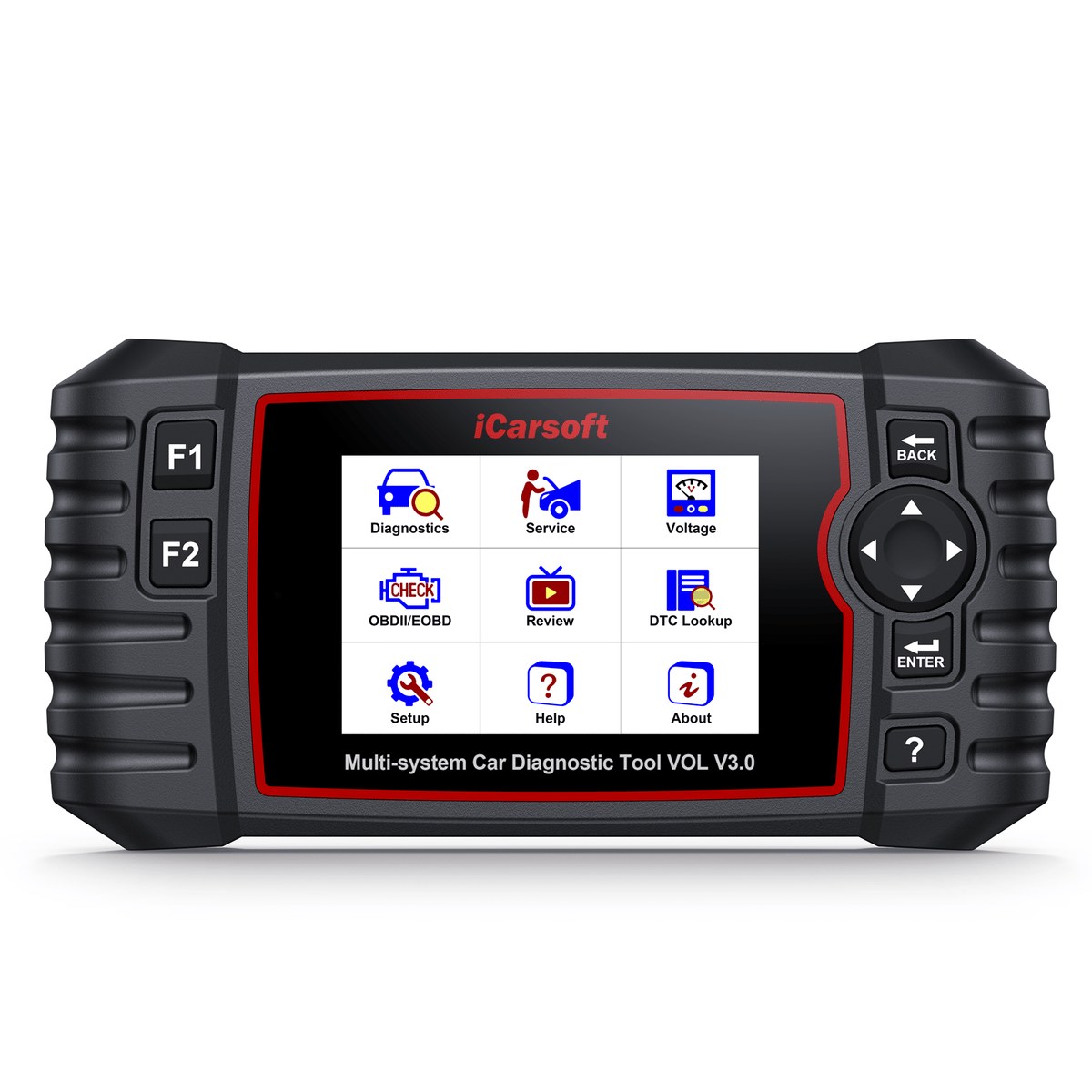

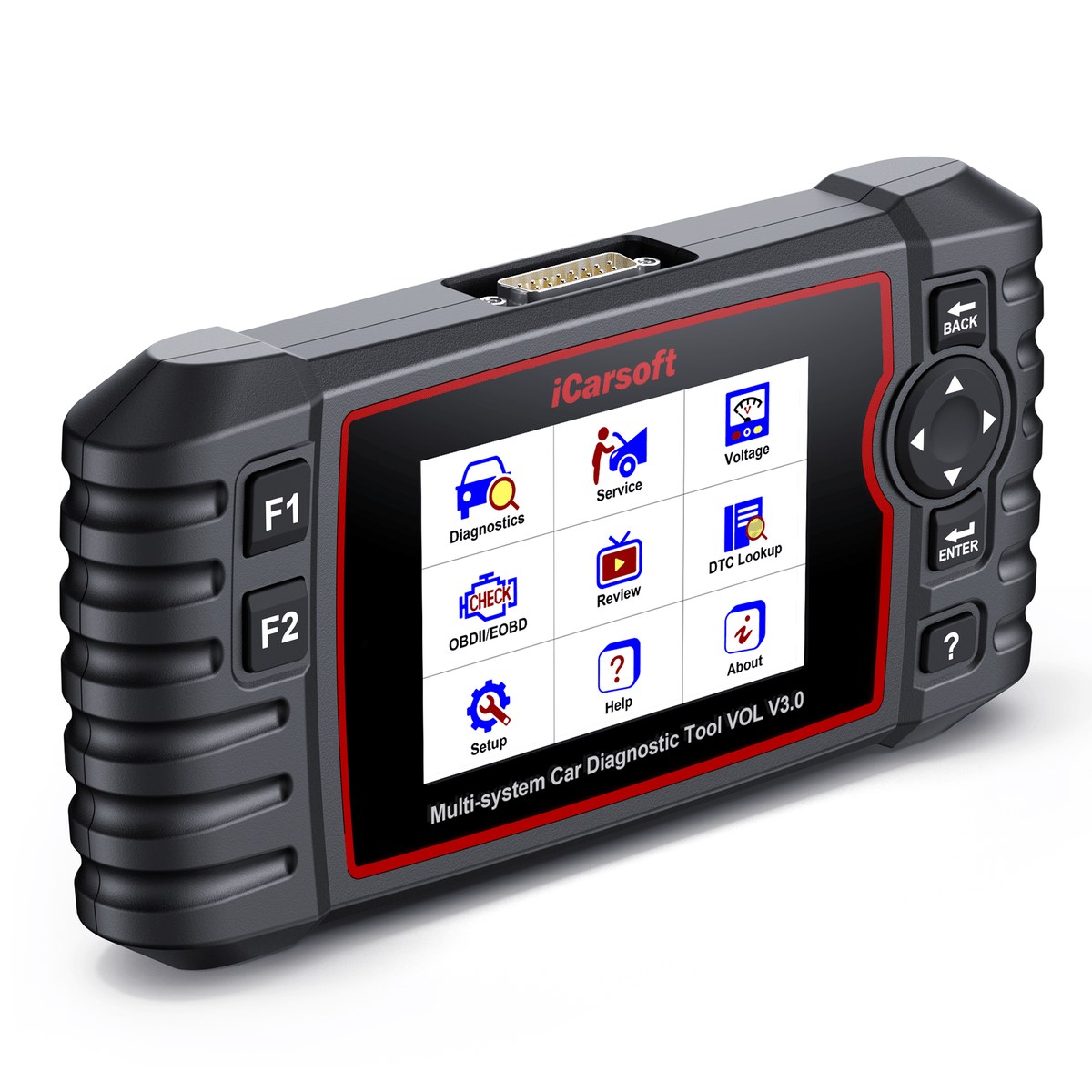

The iCarsoft VOL V3.0 features a vibrant 4-inch screen and intuitive button navigation for quick, effortless menu browsing. It also comes standard with a dedicated card reader, making software and vehicle database updates entirely seamless via your PC. No Wi-Fi needed — update anytime via the included card reader and your PC.
Pay once, never again.
Unlike other OBD scan tools on the market that require annual subscription fees, the VOL V3.0 offers lifetime free software upgrades.
UPDATE PLANFuture-proof communication, built right in.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Volvo/Saab.
What is CAN-FD?
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation evolution of the classic CAN bus, now adopted across the newest Volvo/Saab platforms.
- Flexible Data-Rate: Transfers larger data frames at faster speeds than classic CAN, keeping up with modern vehicle electronics.
- Adopted by Volvo/Saab: The communication standard used on the brands' latest chassis generations.
CAN-FD Ready, Out of the Box
- Native CAN-FD Support: Talks the Volvo/Saab CAN-FD protocol directly from the standard OBD2 port.
- Newest Models Covered: Keeps the VOL V3.0 connected to the latest chassis in its 1996–2025 coverage range.
One Tool, Every Protocol
CAN-FD is only the newest layer — the VOL V3.0 speaks the full range of protocols used across three decades of Volvo/Saab models.
- Beyond CAN-FD: Also supports classic CAN (ISO 11898 high/medium/low-speed & single-wire), K/L-Line, ISO 9141-2, ISO 14230-2, ISO 15765, SAE-J1850 and more.
- Old or New, One Connector: Standard 16-pin OBD2 covers 2001+ models; pre-2001 models connect via the optional 20-pin adapter.
From guesswork to proof, in one tap.
The VOL V3.0 goes beyond reading codes. With full bidirectional control, you can command individual components and watch them respond in real time — cycle the ABS pump motor, run window regulators, activate the fuel pump, open the throttle, and run output tests on almost every onboard module. Pinpoint the faulty part in minutes, without trial-and-error.
Body & Comfort Active Tests
Command the cabin hardware directly from the scanner and watch it respond in real time.
- Run window regulators up and down on command
Powertrain & Fuel Active Tests
Exercise the engine-side components without touching a single connector.
- Activate the fuel pump instantly
- Open the throttle on demand
Chassis & Brake Active Tests
Take direct control of the hydraulic hardware that normally only responds while driving.
- Cycle the ABS pump motor
Dynamic Output Tests
Pinpoint the faulty part in minutes, without trial-and-error.
- Run output tests on almost every onboard module
No typing, no menus — just connect.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
One-Plug Identification
- Automatic VIN Read: Simply plug into the OBD2 port and the VOL V3.0 identifies your BMW, Mini or Rolls-Royce in seconds.
- No Extra Lookup Time: Skip manual VIN typing and model-menu digging entirely — go straight to diagnostics.
Accuracy Built In
- Eliminates Input Errors: No typos means the scanner always loads the exact software profile for your vehicle.
- Smoother, More Reliable Sessions: Correct identification from the first second delivers a more reliable diagnostic experience.
Manual Selection Backup
AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, it doesn't mean the device is faulty — you always have a second way in.
- Manual Selection Mode: Pick your model from the menu and every diagnostic and service function works exactly the same.
- Growing VIN Database: Send your VIN to the support team and it will be verified and added in the next software update.
At home in fifteen languages.
Volvo/Saab scanner VOL V3.0 supports 15 interface languages — pick yours from the list below.
Routine care to pro-level resets, one device.
The VOL V3.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 19 advanced professional functions for complex repair tasks.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
Initializes the adaptive headlamp system.
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Resets airbag data to clear the airbag (SRS) warning light after a collision.
Calibration after repairing or replacing the seat position drive motor.
Anti-theft Matching, disable any lost keys and add new keys. ONLY for vehicles with basic Immobilizer system.
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
Adjusts the engine idle speed.
Activates the fuel pump after replacement.
Reads odometer values stored in multiple ECUs (for service and verification purposes).
Performs turbocharger learning after component replacement, or resets stored learned values.
Recirculates a portion of engine exhaust gas back into the intake system.
Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
Performs radar and camera learning and calibration (ADAS).
Supports oxygen sensor replacement adaptation and initializes the three-way catalytic converter learned values.
Performs service operations including GPF replacement and regeneration.
Resets NOx sensor-related learned values (e.g., catalytic converter parameters) stored in the ECU.
Full-vehicle access through one connector.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the VOL V3.0 provides diagnostic coverage for more complex vehicle systems.
Read & Clear Codes and Freeze Frame
- Read and Clear DTCs: Pull trouble codes from every supported system and clear them once the repair is done.
- Read and Clear Freeze Frame Data: Review the exact sensor snapshot captured when a fault occurred, then clear it after servicing.
Live Data & ECU Information
- Read Live Data: Watch real-time sensor values and parameter streams while the vehicle is running.
- Read ECU Information: View each control module's identification details for accurate servicing and part matching.
Every Module, One Connector
Full-system coverage means the VOL V3.0 doesn't stop at the powertrain — it reaches the complex body, chassis and driver-assistance modules too.
- Access all ECU modules via OBDII-16 DLC: Reach every module on the vehicle through the standard 16-pin diagnostic connector.
Dealer-bench adaptations, driveway convenience.
Every readiness monitor, at a glance.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor, EVAP System Test, and Pending Codes.
From screen to printed report in minutes.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.

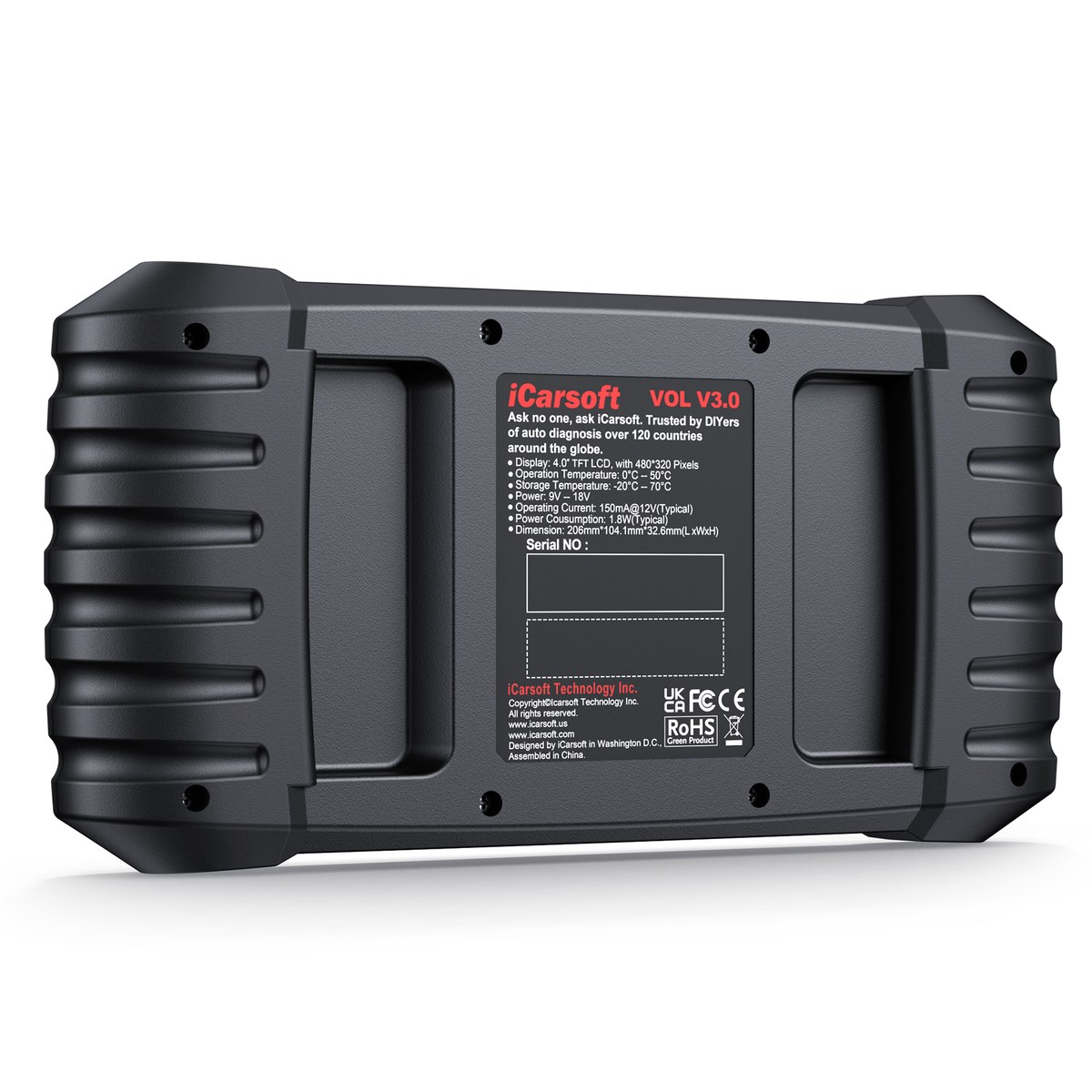

The full technical picture.
| Display | 4.0-inch TFT LCD color screen with 480 x 320 resolution |
| Connectivity | USB 2.0 / OBDII |
| Power | 9-18V |
| Type C Input | 5V / 500mA |
| Power Consumption | 1.8W (Typical) |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 206 × 104.1 × 32.6 mm (8.11 × 4.10 × 1.28 in) |
| Net Weight | ≈ 350 g |
| Supported Automotive Protocols | ISO 9141-2, ISO 14232-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

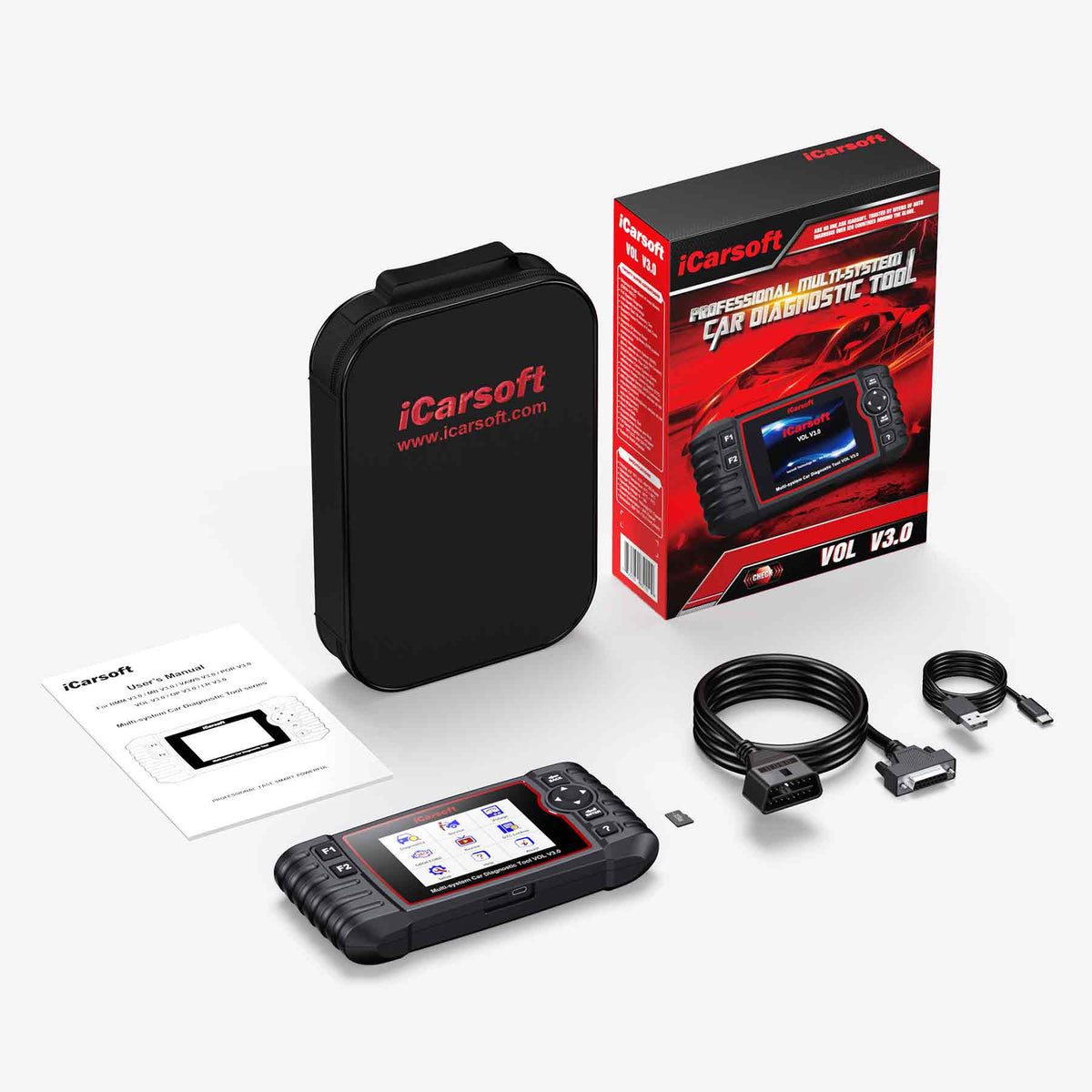

Complete kit, carry-case included.
Where the V3.0 sits in the VOL family.
Every VOL scanner carries the same trusted Volvo/Saab coverage — the V3.0 is the generation that adds full bi-directional control and the expanded set of high-level service functions.
| Feature | VOL V1.0 | VOL V2.0 | VOL V3.0 | VOL V4.0 |
|---|---|---|---|---|
| Coverage | Volvo Saab | Volvo Saab | Volvo Saab | Volvo Saab +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB/Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 19 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Unsure whether a specific function is supported on your exact model year? Send us your VIN and we will confirm before you order.
Check by VIN →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the VOL V3.0 from Volvo/Saab owners, mechanics and channels — see the unit running live diagnostics, bidirectional tests and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the VOL V3.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Volvo/Saab models and functions the VOL V3.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
Available through authorized sellers.
The VOL V3.0 is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
