iCarsoft VOL V4.0
The VOL V4.0 covers every Volvo/Saab system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bidirectional control, 30 service functions, and lifetime free software updates. Compatible with Volvo/Saab models from 1996 to 2025.
Unbox it for Volvo & Saab — then claim two more brands, free.
The iCarsoft VOL V4.0 comes pre-installed with software for Volvo/Saab, making it ready to use right out of the box. 2 further vehicle groups can be downloaded when you need it free of charge.
Pre-installed
Free Downloads
Downloaded free of charge, whenever you need them — no extra cost, ever.
Total Coverage
Pay once and cover the brands you actually service — far beyond Volvo & Saab.

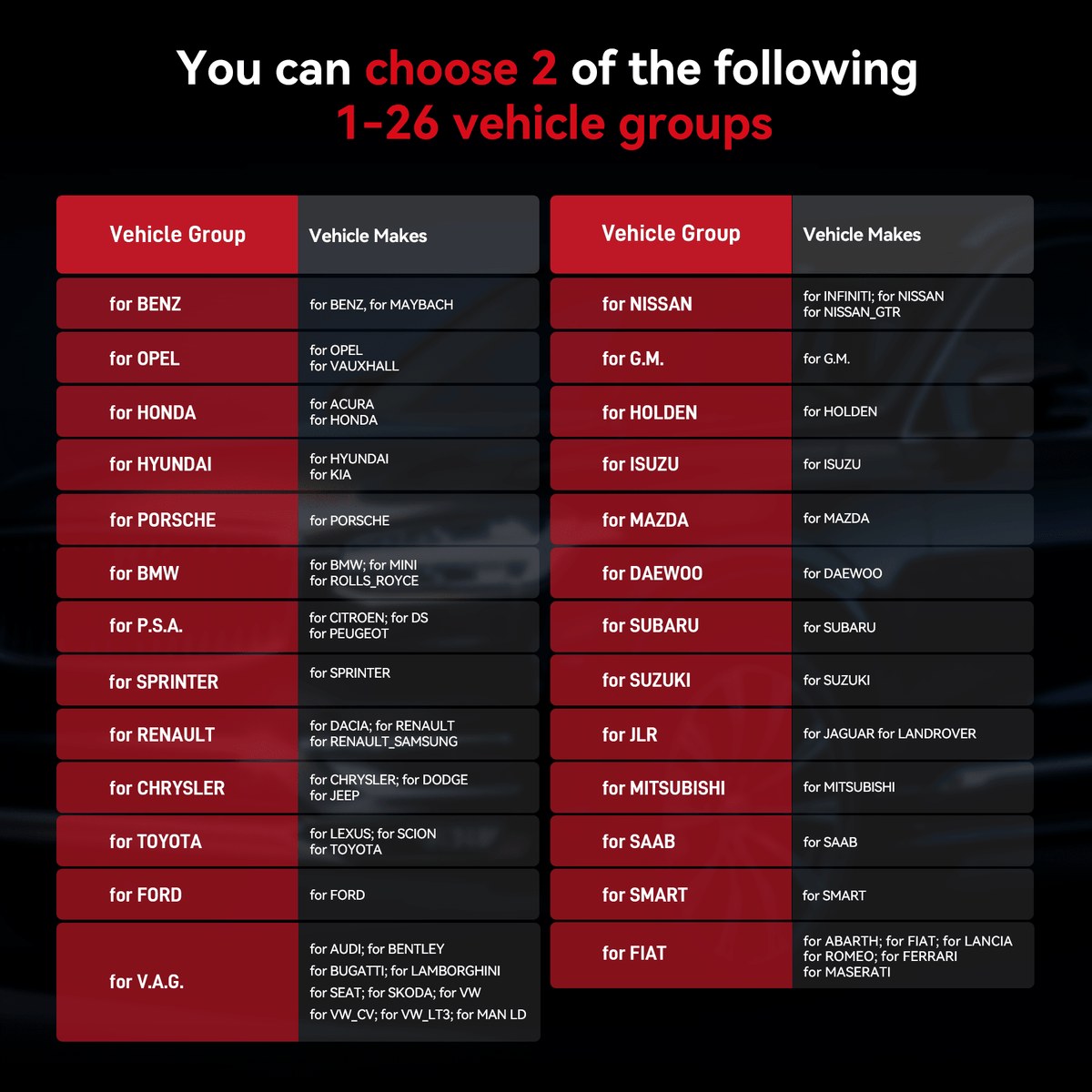

Vehicle Groups Available for Selection
PICK ANY 2 · FREE OF CHARGEA 5-inch Android tablet built to run all day in the bay.

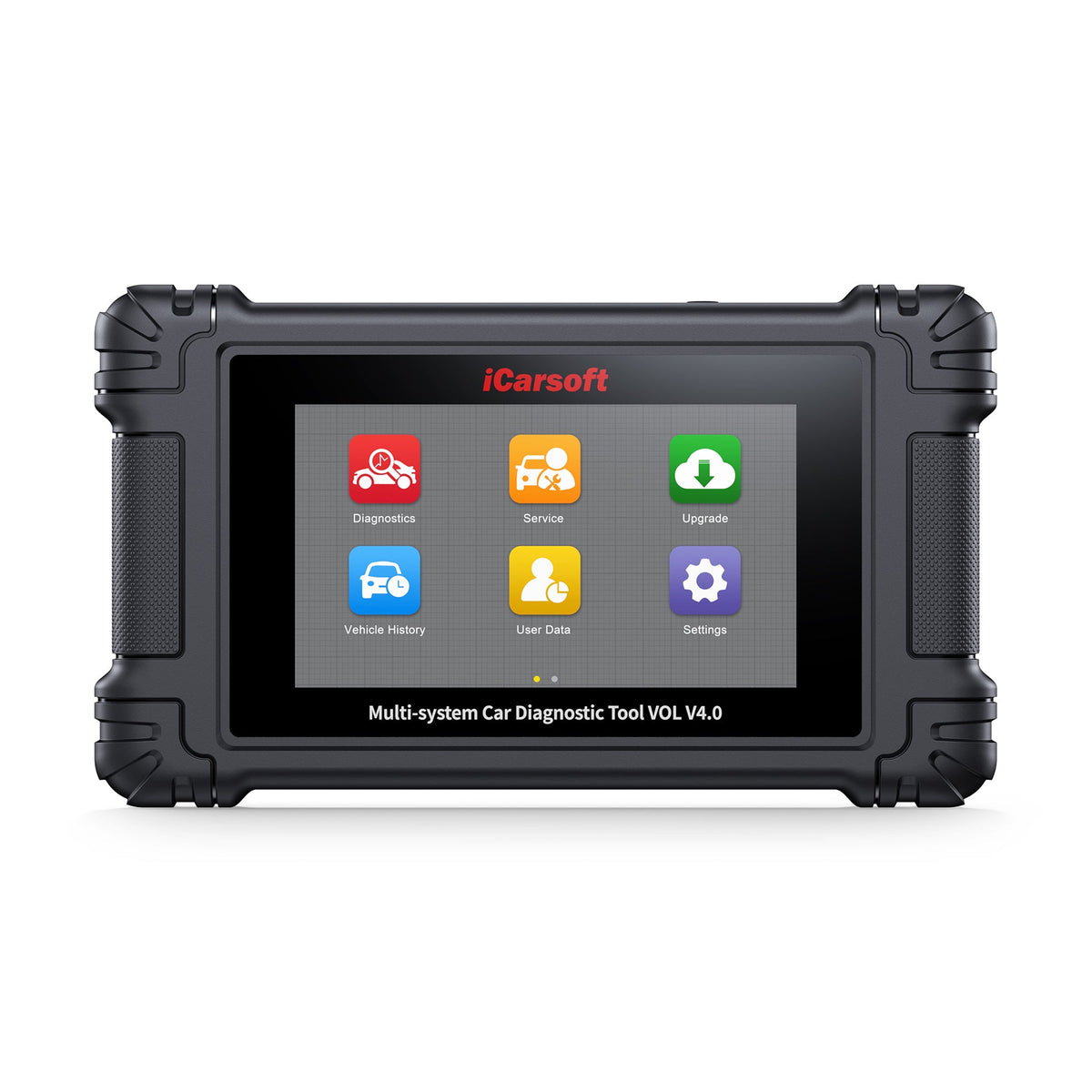

iCarsoft VOL V4.0 car diagnostic tool is equipped with a 5-inch Ultra HD Touch Screen, Android operating system, Quad Core 1.3 GHz processor, 32GB memory and a 5000mAh battery for around 6 hours of continuous use. It offers a user-friendly interface and an ultra-smooth diagnostic experience.
Pay once. Upgrade forever — no subscription, ever.
Unlike other OBD scan tools on the market that require annual subscription fees, the VOL V4.0 offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
UPDATE PLANReady for the newest Volvo & Saab communication standard.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Volvo/Saab.
What is CAN-FD?
CAN-FD (Controller Area Network – Flexible Data-rate) is the next-generation evolution of the classic CAN bus, now adopted across the newest Volvo/Saab platforms.
- Flexible Data-Rate: Transfers larger data frames at faster speeds than classic CAN, keeping up with modern vehicle electronics.
- The New Factory Standard: Adopted by Volvo/Saab on the latest platforms.
CAN-FD Ready, Out of the Box
- Native CAN-FD Support: Talks the CAN-FD protocol directly from the standard OBD2 port.
- Newest Models Covered: Keeps the VOL V4.0 connected to the latest Volvo/Saab chassis in its coverage range.
One Tool, Every Protocol
CAN-FD is only the newest layer — the VOL V4.0 speaks the full range of protocols used across decades of Volvo/Saab models.
- Beyond CAN-FD: Also supports classic CAN, K/L-Line and the other factory protocols listed in the full specifications below.
- Old or New, One Tool: From early CAN models to today's CAN-FD platforms, the VOL V4.0 selects the right protocol for the car.
Stop guessing. Command the part and watch it respond.
The iCarsoft VOL V4.0 bidirectional scan tool supports active component testing and full bidirectional control for most vehicle modules. It sends custom commands and retrieves real-time data to execute targeted functions, including window, mirror, and door lock testing, as well as throttle adjustment — allowing you to pinpoint faults quickly.
Body & Comfort Active Tests
You can directly command individual components and watch them respond in real time — identify the faulty part in minutes, without relying on trial-and-error.
- Command Window Regulators: Drive windows up and down straight from the scanner to isolate bad switch clusters in seconds.
- Trigger Door Locks & Side Mirrors: Actuate locks and mirrors on demand to pinpoint body control module glitches.
Powertrain & Fuel Active Tests
Send commands straight to the engine-side modules and watch each component respond in real time — no cabin switches, no waiting for the fault to reappear.
- Kick On the Fuel Pump: Activate the fuel pump instantly to verify fuel pressure dropping issues.
- Modulate Throttle Opening: Sweep the throttle to check for sticking carbon deposits.
Chassis & Brake Active Tests
Take direct control of the hydraulic hardware that normally only responds while driving — essential for a proper brake service.
- Cycle the ABS Pump Motor: Run the pump on command to purge trapped air during brake bleeding.
Dynamic Output Tests
Beyond the headline tests, the VOL V4.0 can exercise nearly every electrically driven component on the car.
- Any Actuator or Solenoid: Run dynamic output tests on virtually any onboard actuator or solenoid in minutes.
- Confirm Before You Buy: Watch the module respond live and confirm the failed part before ordering a replacement.
Plug in. Your Volvo or Saab names itself in seconds.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
One-Plug Identification
- Automatic VIN Read: Simply plug into the OBD2 port and the VOL V4.0 identifies your vehicle in seconds.
- No Extra Lookup Time: Skip manual VIN typing and model-menu digging entirely — go straight to diagnostics.
Accuracy Built In
- Eliminates Input Errors: No typos means the scanner always loads the exact software profile for your vehicle.
- Smoother, More Reliable Sessions: Correct identification from the first second delivers a more reliable diagnostic experience.
Manual Selection Backup
AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, it doesn't mean the device is faulty — you always have a second way in.
- Manual Selection Mode: Pick your model from the menu and every diagnostic and service function works exactly the same.
- Growing VIN Database: Send your VIN to the support team and it will be verified and added in the next software update.
Diagnose in your language, wherever you wrench.
Volvo/Saab scanner VOL V4.0 supports English, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish, and Finnish.
Far more than a basic code reader.
The VOL V4.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 21 advanced professional functions for complex repair tasks.
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Relearns throttle valve control parameters after resetting or replacing the throttle body.
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Relearns the injector control parameters when an injector is renewed or replaced.
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
Initializes the adaptive headlamp system.
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Resets airbag data to clear the airbag (SRS) warning light after a collision.
Calibration after repairing or replacing the seat position drive motor.
Anti-theft Matching, disable any lost keys and add new keys. ONLY for vehicles with basic Immobilizer system.
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
Adjusts the engine idle speed.
Activates the fuel pump after replacement.
Reads odometer values stored in multiple ECUs (for service and verification purposes).
Performs turbocharger learning after component replacement, or resets stored learned values.
Recirculates a portion of engine exhaust gas back into the intake system.
Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
Performs radar and camera learning and calibration (ADAS).
Supports oxygen sensor replacement adaptation and initializes the three-way catalytic converter learned values.
Performs service operations including GPF replacement and regeneration.
Resets NOx sensor-related learned values (e.g., catalytic converter parameters) stored in the ECU.
Checks and compares odometer data stored across multiple ECUs to detect mileage tampering.
Reads and matches the VIN across all vehicle ECUs to detect inconsistencies or unauthorized module replacement.
Additional service functions are available in the Miscellaneous section.
Reach every ECU — not just the four standard systems.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the VOL V4.0 provides diagnostic coverage for more complex vehicle systems.
Codes & Freeze Frame
- Read and Clear DTCs: Pull diagnostic trouble codes from every supported system and clear them once the repair is done.
- Read and Clear Freeze Frame Data: Review the exact sensor snapshot captured at the moment a fault occurred, then clear it after servicing.
Live Data & ECU Info
- Read Live Data: Watch real-time sensor values and parameter streams while the vehicle is running.
- Read ECU Information: View each control module's identification details for accurate servicing and part matching.
All-Module Access
Full-system coverage means the VOL V4.0 doesn't stop at the powertrain — it reaches the complex body, chassis and driver-assistance modules too.
- Access All ECU Modules via OBDII-16 DLC: Reach every module on the vehicle through the standard 16-pin diagnostic connector.
- Beyond the Big Four: Diagnostic coverage extends past Engine, ABS, Airbags and Transmission into more complex vehicle systems.
Dealer-grade adaptations, right in your hands.
Every emission check, all ten modes, ready to pass.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor, and EVAP System Test.
Save it, share it, print it — every job on record.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Diagnostic History
Quickly access previously tested vehicle systems and earlier scan results.
Save & Share
Save and share full diagnostic reports with customers or colleagues.
Print Reports
Connect the device to a Windows PC via USB and print diagnostic data for future reference.
Feedback Function
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.
Every detail, on the record.
| Operating System | Android |
| Processor | Quad Core 1.3 GHz |
| Memory | 32GB |
| Display | 5-inch LCD capacitive touchscreen with 854x480 resolution |
| Connectivity | USB 2.0 / Wi-Fi (2.4GHz) / OBDII |
| Power | 9-18V |
| Operating Current | ≤500mA |
| Battery Capacity | 3.7V 5000mAh 7.4Wh |
| Tested Battery Life | Around 6 hours of continuous use |
| Type C Input | 5V / 2A |
| Power Consumption | 500mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 200 × 116 × 30.2 mm (7.87 × 4.57 × 1.19 in) |
| Net Weight | ≈ 380 g |
Everything you need, right in the box.
Note: Use the charger you already own — no extra e-waste. The VOL V4.0 can be charged using any standard USB-C charger (5V/2A recommended) or a computer's USB port.
See how far V4.0 pulls ahead of V1.0, V2.0 and V3.0.
Every VOL scanner carries the same trusted Volvo & Saab coverage — V4.0 adds the 5-inch touchscreen, Wi-Fi updates, full bidirectional control and the complete set of high-level service functions.
| Feature | VOL V1.0 | VOL V2.0 | VOL V3.0 | VOL V4.0 |
|---|---|---|---|---|
| Coverage | Volvo Saab | Volvo Saab | Volvo Saab | Volvo Saab +2 additional vehicle make groups free of charge |
| Display Size | 3.5 inches | 4 inches | 4 inches | 5 inches |
| Interaction | Physical Buttons | Physical Buttons | Physical Buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✔ | ✔ | ✔ | ✔ |
| Bi-directional / Active Test | ✘ | ✘ | ✔ | ✔ |
| Oil Service Reset | ✔ | ✔ | ✔ | ✔ |
| SAS Reset | ✔ | ✔ | ✔ | ✔ |
| EPB / Brake-Pad Reset | ✘ | ✔ | ✔ | ✔ |
| Electronic Throttle Control | ✘ | ✔ | ✔ | ✔ |
| DPF Regeneration | ✘ | ✔ | ✔ | ✔ |
| Injector Coding | ✘ | ✔ | ✔ | ✔ |
| ABS Bleeding | ✘ | ✔ | ✔ | ✔ |
| BMS Reset | ✘ | ✔ | ✔ | ✔ |
| TPMS Reset | ✘ | ✔ | ✔ | ✔ |
| 19 High Level Service Functions | ✘ | ✘ | ✔ | ✔ |
Check your connection before you order.
Standard 16-Pin OBD2
Built in on every VOL V4.0 — plug-and-play on Volvo and Saab models equipped with the standard 16-pin OBD2 diagnostic port. No adapter needed.
Volvo & Saab Petrol
Full-system coverage for petrol Volvo and Saab vehicles manufactured after 2001, all the way through to the 2025 model year.
Diesel OBD2 Models
Diagnoses diesel OBD2 Volvo and Saab vehicles from 2004 onwards, including engine, transmission, ABS, airbag and ECU adaptations.
Not sure whether your Volvo or Saab is supported? Send us your VIN and our support team will confirm coverage before you buy.
Verify by VIN →Everything you need to know.
Watch it work — reviews from drivers & pros.
Independent YouTube reviews of the VOL V4.0 from Volvo & Saab owners, mechanics and channels — see the unit running live diagnostics, bidirectional tests and full-system service functions on real cars before you decide.
These are independent reviews hosted on YouTube — each reflects the creator’s own opinion, not a paid endorsement. Videos load only when you press play, so the page stays fast.
Manual & software updates.
Download the user manual, check the full function & vehicle coverage list, and review warranty & returns before you buy.
Multi-Language User Manual
The complete user manual for the VOL V4.0 — setup, full-system diagnostics, service functions and troubleshooting.
Function List & Vehicle Coverage
See exactly which Volvo and Saab models and functions the VOL V4.0 supports, by system.
Warranty & Returns
Backed by the iCarsoft manufacturer warranty. Review the full warranty terms and the returns & refunds policy.
Available through authorized sellers.
The VOL V4.0 is sold through authorized iCarsoft sellers worldwide. Contact our team to confirm compatibility for your vehicle, check stock, or find your nearest authorized distributor.
Interested in the VOL V4.0?
This page is for product information. Tell us what you need and our team will get back to you shortly — to confirm vehicle compatibility, request a quote, or find your nearest authorized dealer.
- Confirm vehicle compatibilityCheck support for your VIN / model year
- Get pricing & availabilityQuotes, stock, wholesale & retail inquiries
- Find a local authorized dealerWe connect you with your nearest channel
Want to become a dealer? Apply to partner →
By submitting, you agree to be contacted about this inquiry. We never share your information.
